Machines & equipment for sale

Gallenkamp (Sanyo Weiss) Gallenkamp Vacuum Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OE2631
Manufacturer
Gallenkamp (Sanyo Weiss)
Model
OVL.570.010J
Year of Manufacture
2002
Serial
90/02/384
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
370 x 310 x 260mm
Max Temp
200°C
Other Info
1 Shelf with 3 Runners
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
66
External Dimensions (WxDxH mm) [?]
640 x 450 x 425mm
Delivery
Your delivery options

Description

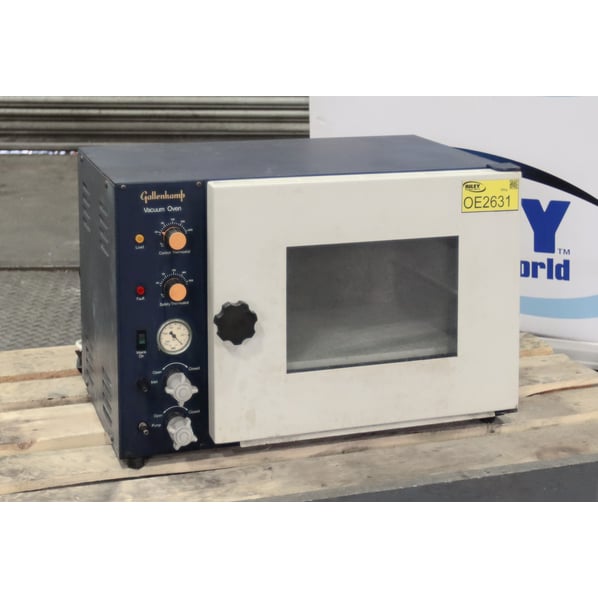

Manufactured Sanyo Gallenkamp and branded ‘ Gallenkamp Vacuum Oven ‘ . The Vacuum Oven features a spacious rectangular chamber with toughened glass viewing window and shatter-resistant safety screen. Temperatures up to 200°C are possible via the controller. An independent temperature safety circuit protects sensitive samples from over-heating and including a vacuum gauge.

Main Features

  • Compact size, large load 30 Litre capacity.
  • Temperature setting.
  • Independent over temperature safety protection.
  • Easy-to-read vacuum gauge.
  • Highly versatile oven for atmospheric or reduced atmosphere operation.
  • Suitable for solvent removal.
  • Tough steel construction with strong door closure.
  • Toughened glass window.
  • Front mounted connectors.

Ideal Uses

  • By using reduced pressure, the Vacuum Oven enables heat sensitive materials to be dried at low temperatures. Alternatively, more stable samples may be dried more rapidly at higher temperatures, without fan circulation.
  • This oven is also particularly useful for controlled atmosphere heating (e.g. curing of resins under nitrogen or reduced oxygen conditions). Since the inner chamber is sealed, it may also be suitable for solvent removal work, subject to adequate exhaust and ventilation conditions being provided for the oven and room respectively.

Construction

  • The outer case is tough, stoved epoxy-polyester painted steel, to look good even under the most demanding working conditions. The vacuum chamber is a robust light alloy casting supplied with a shelf and three shelf positions. The chamber is heated by large area heater panels strapped to its outer surface
  • Glass fibre insulation maintains safe, low outer case temperatures. The chamber is closed by a 12.5mm thick toughened glass plate sealing onto a silicone rubber gasket. This glass plate is mounted onto the door by 4 spring-loaded pins to ensure an excellent, even seal to the chamber. Door closure is achieved via a strong and positive twist action latch.

pdf icon Print / Download Gallenkamp (Sanyo Weiss) Gallenkamp Vacuum Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
