Machines & equipment for sale

Industrial Cooling Systems (ICS) ICS TAE EVO 051 Chiller

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
Arriving in stock soon, available for purchase now.
Condition
From a working environment, Excellent Condition, Current Model
Contact Us
Stock No
CE661
Manufacturer
Industrial Cooling Systems (ICS)
Model
TAE EVO 051
Year of Manufacture
c. 2012
Condition
From a working environment, Excellent Condition, Current Model
Ave. cooling capacity
20kw @ 15cwlt chilled water leaving temp
Ave. Water Flow Rate
2.55-6m3/h flow at a head of 2.9-1.9 bar
Other Info
Refridgerant - R407C
Location
Arriving in our warehouse soon
Weight (kgs)
220
External Dimensions (WxDxH mm) [?]
750 x 1350 x 1400
Delivery
Your delivery options

Description

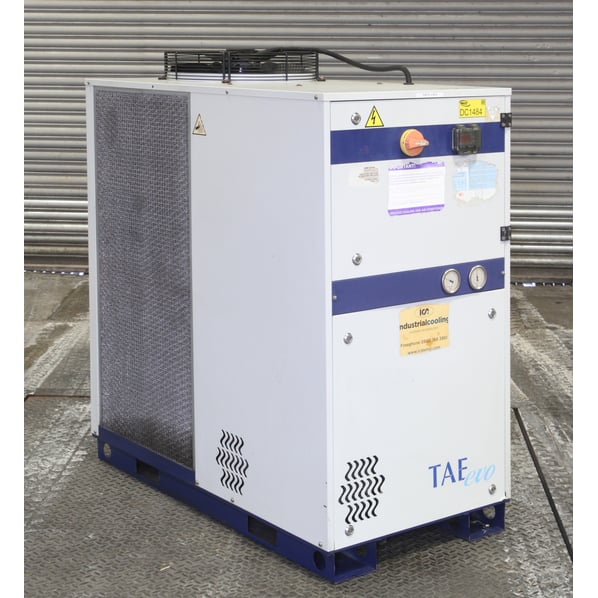

A popular pre-owned self contained air cooled package chiller has a cooling capacity of 14kW at 7ºC (20kW @ 15cwlt) chilled water leaving temperature in an ambient of 27ºC.

Suitable for a wide range of solution and water cooling applications including cooling of anodising plating applications, injection moulding, food, diary, laser cutting and air conditioning to name but a few.

Comprehensive control panel incorporating a microprocessor based digital temperature controller with fault diagnostics.

Specifications

  • Approx overall size 750mm x 1350mm x 1300mm high
  • Installed nominal power of 7.9kW
  • Internal 110L storage tank
  • 0.75kW circulation pump offering between
  • 2.55-6m³/h flow at a head of 2.9-1.9 bar respectively
  • Quite running hermetically sealed reciprocating compressor
  • Single 1.15kW condenser cooling fan unit
  • 1" bsp inlet / outlet connections
  • 415 Volt 3ph
  • Running on the modern non ozone depleting R407c refrigerant gas
  • Weight 215kg





pdf icon Print / Download Industrial Cooling Systems (ICS) ICS TAE EVO 051 Chiller Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
