Guyson International C400 Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Buy Now Add to Quote Contact Us
Stock No
EE2232
Manufacturer
Guyson International
Model
C400/3 Dust Collector
Year of Manufacture
2010
Serial
804077
Approx Duty CFM / M³/Hr
11M3/Hr
Filter Area ft² / m²
Cartridge filter area - 10m2
Other Info
ATEX rated explosion relief panel.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
200
External Dimensions (WxDxH mm) [?]
1400 x 900 x 2000
Delivery
Your delivery options

Description

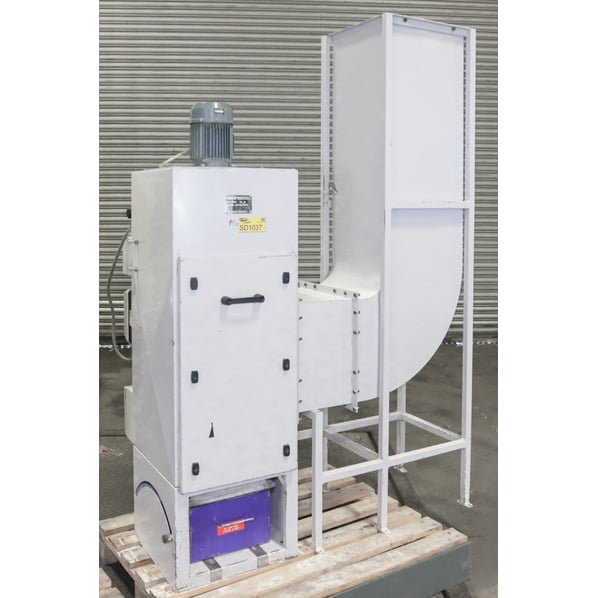

The Guyson model C400 dust collection unit is a highly efficient unit for filtering out and collecting the dust laden air from the blast cabinet using a single cartridge filter. The heavier extracted particles being deflected downwards towards the collection bin, the lighter particles are retained on the surface of the filter. This model is generally used for more industrial applications/usage.

Only Used in the Medical Industry

This plant is one of several machines acquired during a recent site clearance of a company supplying medical equipment.

The maintenance and servicing was conducted in line with the medical industries requirements. Any faults were corrected immediately working to the highest standards.



Dust Extraction Specification

  • C400 3 cartridge dust extractor.
  • Cartridge filter.
  • ATEX rated explosion relief panel.
  • Secondary HEPA filter.
  • Twin magnehelic pressure gauges.
  • Cartridge filter area - 10m²
  • Manual reverse compressed air pulse
  • Outlet baffle to regulate air flow
  • Dust Collection Bin

Phase: Single / Three
Voltage: 230 / 400
Cycle (Hz): 50
Power (kW): 0.75
Full load current* (amps): 5.5 (1Ph) / 2.0 (3Ph)

pdf icon Print / Download Guyson International C400 Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
