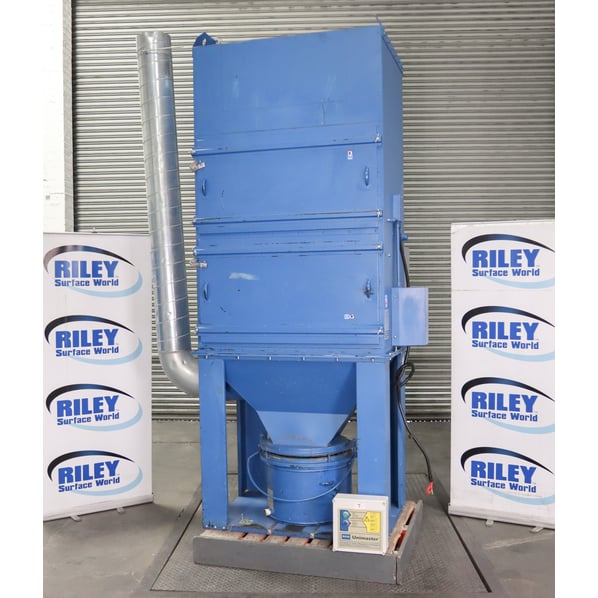

Donaldson Torit (DCE) Unimaster UMA 253 K7 Dust Extractor

- Stock No
- EE2225
- Manufacturer
- Donaldson Torit (DCE)
- Model
- UMA 253 K7
- Year of Manufacture
- 2005
- Serial
- 00017037
- Condition
- From a working environment, Good Condition, Current Model
- Approx Duty CFM / M³/Hr
- 1200 // 2400
- Filter Area ft² / m²
- 250 // 25
- Other Info
- ATEX Rated Explosion Relief Panel
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 418
- External Dimensions (WxDxH mm) [?]
- 1750 x 1500 x 3050mm
- Delivery Your delivery options
Description
A second hand DCE Unimaster UMA 252 K7 dust extraction unit designed to stand alongside a very wide range of dust generating machinery and processes. A powerful 3.0kW // 4Hp motor drives the fan.
The UMA 252 is a compact, self contained fabric filter dust control unit complete with 3kW fan, self cleaning mechanism, ATEX rated explosion relief panel, easy-access filter assembly, & a 3ft³ waste container bucket with quick-release sealer gear and bucket balance facility.
Design features
- Compact Design Minimises floor space and fits in virtually any plant layout.
- Versatility To suit a variety of dust collection applications
- Quiet & Efficient Operation Motors and fan are enclosed in collector housing to minimise noise.
- 2ft³ collection bucket
- Bucket balance Allows plastic collection bags to be used within the collection buckets by equalising the pressure behind the bag and preventing it being sucked upwards.
- Explosion relief panel Allows the unit to be safely used with potentially explosive dusts and gases, such as those generated like aluminium and flour dusts in an air enriched environment.
- Silencer box Reduces noise levels in the environment.
- Quick-Release Lever Allows for easy removal and maintenance of bin.
- Inlet Deflector Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
- Bag shaker motor for filter cleaning.
- Heavy-duty flexible metal inner bag coils Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
- Bag-Release Screws Allow for easy removal of bags.
Electrical supply 400v/ 3ph / 50Hz / 3kw
Dimensions 1750 x 1500 x 3050mm
Weight 418kgs
Print / Download Donaldson Torit (DCE) Unimaster UMA 253 K7 Dust Extractor Datasheet
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
