Cemastir Lavametalli S.r.l Multi Stage Aqueous Cleaning and Drying Machine

Direct From Site Clearance

Normal Retail Price [?]
£ Login or Register for price
Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
20 August 2025 15:00 GMT while stocks last
Part of a Direct Site Clearance
Ex-Demo, Precision Component Cleaners
Condition
Brand New, Excellent Condition, Current Model
Location
Livingston, Scotland, UK
Buy Now Add to Quote Book Appointment
Stock No
FRA400
Manufacturer
Cemastir Lavametalli S.r.l
Model
ATR 450/2
Year of Manufacture
2024
Serial
M.149.24001
Condition
Brand New, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
450 x 300 x 200mm
Process Stages
2 Tank - Wash & Rinse - Both 250L
Other Info
Max Load 200kg
Location
Livingston, Scotland, UK
Weight (kgs)
1500
External Dimensions (WxDxH mm) [?]
1520 x 2130 x 2140
Delivery
Your delivery options

Description

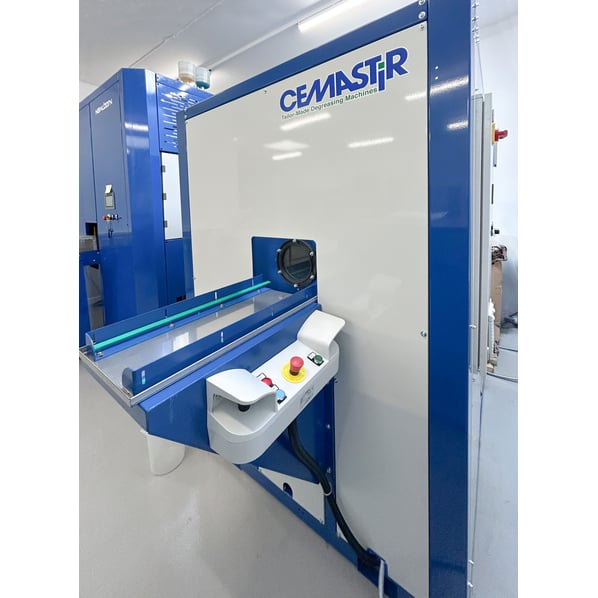

This ex-demo rotating drum industrial washer offers a modern, efficient solution for heavy-duty cleaning. Designed to clean components made from a variety of materials like steel, stainless steel, brass & aluminium - it delivers exceptional results with a like-new performance. A rare opportunity to invest in high-quality industrial washing for a fraction of the price new.

Suitable for components such as blind holes, recesses, small metal parts, valves etc.

Available from Our Ex Demo Precision Component Cleaners Event

Don’t miss this rare opportunity to secure one of two unused, high-precision component cleaners in our latest Direct From Site clearance. This top-quality cleaning system is still connected and available for live demonstration - see it in action before you buy.

Get in touch today to book your viewing and take the next step toward upgrading your cleaning process.



Cleaning Features

  • The washing basket rotates on its longitudinal axis both clockwise and anticlockwise, thus ensuring a perfect washing result. Ending every cleaning cycle by automatically aligning the basket to the exit of unloading.
  • Constructed of stainless steel, this ATR cleaner can be used for cleaning components via spraying, immersion or both using the two tanks.
  • For precision cleaning, the opposite ramp rotation angles the basket so it facing opposite the spray ramp for optimum cleaning results.
  • The ATR model is mechanically pre-set for the most important options required: oil skimmer for each tanks, hot air drying, vertical filters, ultrasonic and steam condenser.

Specifications

  • Basket size: 450mm x 300mm x 200mm
  • Max load: 200kg
  • Wash tank: 250 litres
  • Rinse tank: 250 litres
  • Machine weight: 1500kg
  • Machine size (WxDxH): 1520mm x  2130mm x 2140mm
  • Basket load height - 1080mm
  • Washing flow & pressure: 125 litres / min & 4.5 BAR
  • Rinsing flow & pressure: 125 litres / min & 4.5 BAR
  • Tanks temperature (min/max): 20 - 90°C
  • Washing heating elements: 12kW
  • Rinsing heating elements: 8kW
  • Basket rotation: 0.18kw  /  0.8-2.3 RPM
  • Spraying ramps rotation: 0.09kw - 2.3 RPM
  • Compressed air - 6 BAR

 Cleaning Cycle Options Available

  • Washing
  • Washing & immersion with turbulence
  • Wash, rinse & immersion with turbulence
  • Wash, rinse & ultrasonic immersion
  • Hot air & vacuum drying

pdf icon Print / Download Cemastir Lavametalli S.r.l Multi Stage Aqueous Cleaning and Drying Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
