Machines & equipment for sale

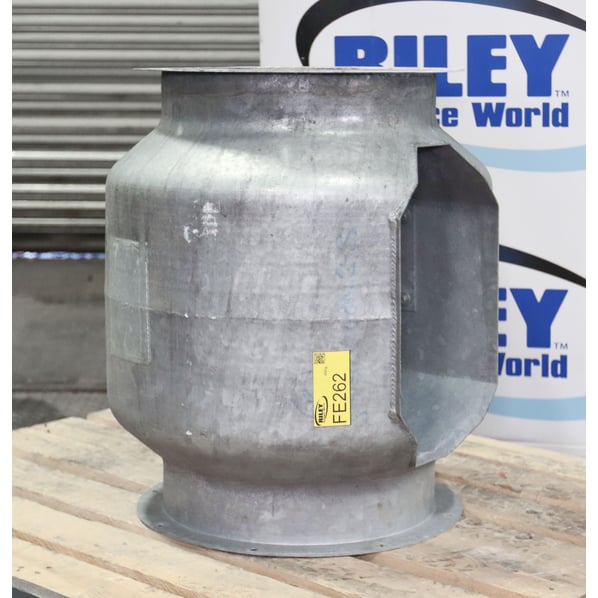

Elta Group SB Conical Bifurcated Axial Fan

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
FE262
Manufacturer
Elta Group
Model
400-CON2-3
Year of Manufacture
2016
Serial
K00128233
Condition
From a working environment, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
Max. Air Flow 4.5M3/Sec.
Filter Area ft² / m²
Forced Air Movement Only.
Other Info
Max. Operating Temperature of 200°C
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
49
External Dimensions (WxDxH mm) [?]
Ø570mm x 650mm
Delivery
Your delivery options

Description

A conical bifurcated axial fan, specially developed with motor out of the airstream to handle more hostile air movement applications. Suitable for elevated temperatures up to +200°C.

Spec.

  • High efficiency adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium.
  • The fan casing is dip galvanised after fabrication to BS 729 offering enhanced corrosion resistance.
  • The fans are suitable for external mounting as standard.
  • Motor is isolated from hot and contaminated air, prolonging the life of the fan.
  • Constructed from sheet steel with both motor and impeller mounted within the length of the unit casing.
  • Motors are 2.2kW  foot mounted, totally enclosed fan cooled, IP55, with sealed for life bearings with a standard industrial paint finish and Class H insulation to EN 60034-5.
  • Adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium (LM6), natural finish. Impellers are factory set at an angle to provide maximum performance. The hubs are manufactured from die cast aluminium alloy (LM24). Assembled impellers are to be dynamically balanced to ISO 14694 Grade G6.3.

Typical Applications

  • Kitchen Extract.
  • Spray Booths.
  • Hot Gas Situations.
  • Corrosive Atmospheres.
  • Boiler Houses.
  • Heavy Industrial.

pdf icon Print / Download Elta Group SB Conical Bifurcated Axial Fan Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
