Donaldson Torit (DCE) Unimaster UMA 250 Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EE2218
Manufacturer
Donaldson Torit (DCE)
Model
UMA 250
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
1500 // 2500
Filter Area ft² / m²
250 // 25
Other Info
Includes Silencer and Sequential Control
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
320
External Dimensions (WxDxH mm) [?]
1340 x 980 x 2430
Delivery
Your delivery options

Description

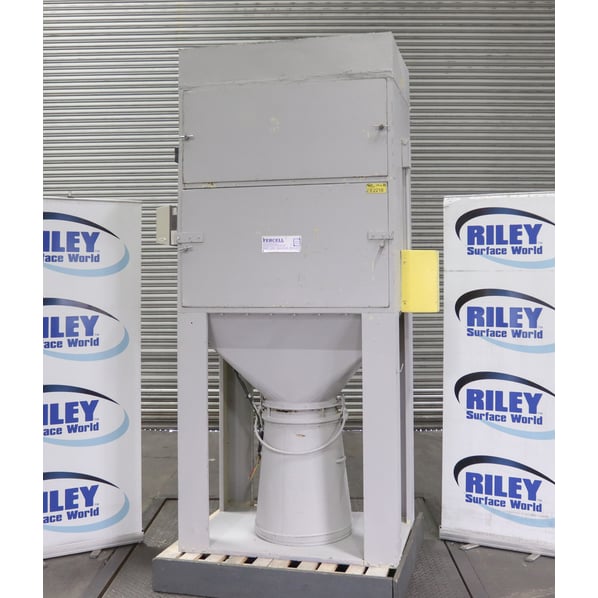

A second hand DCE Unimaster UMA 250 dust extraction unit designed to stand alongside a very wide range of dust generating machinery and processes.

The UMA 250 is a compact, self-contained fabric filter dust control unit complete with 3kW  // 4Hp fan, self cleaning mechanism, easy-access filter assembly and a 2ft³ waste container bucket with quick-release sealer gear.

Design features

  • Compact design.
  • Minimises floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation.
  • Motors and fan are enclosed in collector housing to minimise noise.
  • 2ft³ collection bucket.
  • Silencer box.
  • Reduces noise levels in the environment.
  • Quick release lever allows for easy removal and maintenance of bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils.
  • Inserted into filter bags keeps bags open to maximize airflow and assist in knocking the dust off during the cleaning cycle.
  • Bag-release screws allow for easy removal of bags.


Electrical supply: 400v/ 3ph / 50Hz / 3kw //4Hp
Dimensions: 1340mm x 980mm x 2430mm
Inlet: 310mm x 190mm
Weight: 320kg

pdf icon Print / Download Donaldson Torit (DCE) Unimaster UMA 250 Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
