Machines & equipment for sale

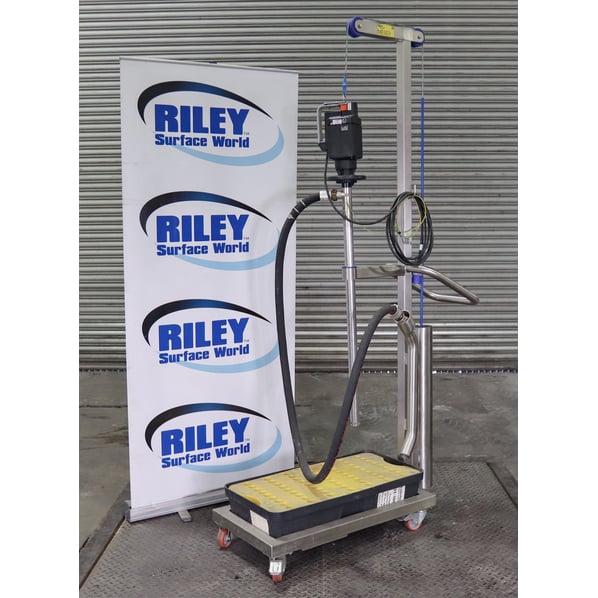

Lutz Mobile ME II 3 Barrel Pump with 1000mm Immersion Tube for Solvents

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
ME923
Manufacturer
Lutz
Model
ME II 3 Barrel Pump with 1000mm Immersion Tube
Year of Manufacture
c.2020
Serial
50004 015013
Condition
From a working environment, Excellent Condition, Current Model
Capacity
max. 95 L/Min
Process Application
Solvent Pumping
Other Info
Safely Move Solvent From Drum to Machine
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1300 x 960 x 2250mm
Delivery
Your delivery options

Description

This barrel pump is suitable for low-viscosity, flammable and highly flammable solvents. Perfectly suited for removing or decanting solvents from drums of 1000mm in depth.

Features

  • Electrical plug (3 pin 16 amp).
  • Barrel pumping unit equipped with Lutz original handwheel.
  • Suitable for filling or transferring alternative fuels, oils and flammable liquids.
  • Mounted on a stainless steel bunded trolley for ease of movement around the site.

Advantages

  • Electric driven pump.
  • No lubricants and therefore no contamination of the pumped liquid by lubricants.
  • Highly resistant high-grade carbon shaft bearing.
  • Maintenance without special tools.
  • Approved in accordance with ATEX Directive 2014/34/EU, category 1/2

Specification

  • Max. depth 1000mm.
  • 460W, 230V
  • Immersion tube diameter 41mm.
  • Radial flow impeller.
  • Stainless steel drive shaft.
  • Explosion protection.
  • Mechanical seals, no seals are in contact with the medium.

pdf icon Print / Download Lutz Mobile ME II 3 Barrel Pump with 1000mm Immersion Tube for Solvents Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
