Machines & equipment for sale

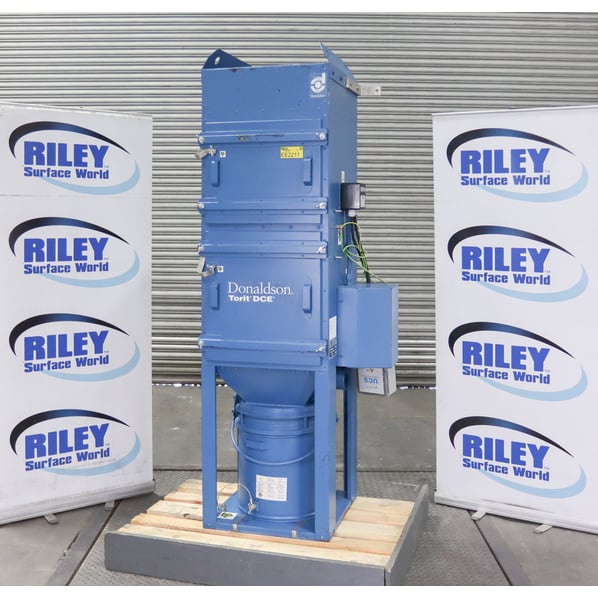

Donaldson Torit (DCE) UMA Unimaster 72G1 Dust extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Unused, Current Model, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
EE2211
Manufacturer
Donaldson Torit (DCE)
Model
UMA72G1
Year of Manufacture
2019
Serial
18062460
Condition
Unused, Current Model, Seen powered at RSW
Approx Duty CFM / M³/Hr
500 // 850
Filter Area ft² / m²
70 // 7
Other Info
0.75kW Motor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
203
External Dimensions (WxDxH mm) [?]
800 x 800 x 1800mm
Delivery
Your delivery options

Description

This as new Unimaster 72 G1 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

  • Compact design minimises floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation motors and fan are enclosed in collector housing to minimize noise.
  • Easy Maintenance.
  • 2³ft collection bucket.
  • Silencer box.
  • Quick-release lever allows for easy removal and maintenance of bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
  • ATEX type re-enforced bolt on doors.
  • Bag-release screws allow for easy removal of bags.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

What is Dry Dust Extraction?

The most popular dust extraction method, dry dust extractors collect dust using filters and cartridges. Known for processing large volumes of air when filtering medium/large dust particles such as wood, flour, and metals.

They typically include a cleaning system to discharge the dust gathered within the filters and cartridges, they carry out a shaker cycle or reverse pulse cycle to free the collected dust and empty it into a removable storage bin.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

pdf icon Print / Download Donaldson Torit (DCE) UMA Unimaster 72G1 Dust extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
