Machines & equipment for sale

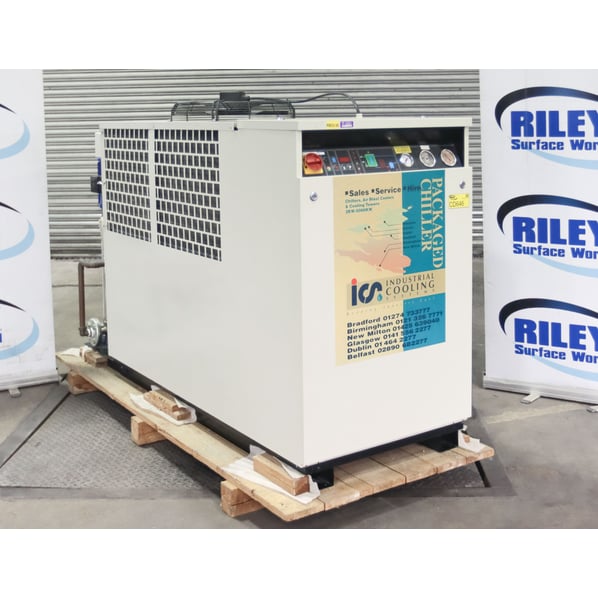

Industrial Cooling Systems (ICS) TAE 081 Chiller

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition
Buy Now Add to Quote Contact Us
Stock No
CD646
Manufacturer
Industrial Cooling Systems (ICS)
Model
TAE 081
Year of Manufacture
1998
Serial
1200807617
Condition
Seen working by RSW, Good Condition
Ave. cooling capacity
28.4 kW @ 15°C
Ave. Water Flow Rate
4.9/9.6 with 2.5/1.3 bar
Other Info
Refrigerant - R22
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
310
External Dimensions (WxDxH mm) [?]
750 x 1740 x 1350
Delivery
Your delivery options

Description

An excellent example of ICS's industry leading range of process chillers designed exclusively for manufacturing.

The unit has a low footprint and has been designed to be “plug and play” to ensure compatibility with many production lines. The units also feature 3-bar pressure pumps as standard, coil in take evaporators and have been designed using high-quality components with longevity in mind.

Energy & Process Efficiency

  • High efficiency finned coil in-tank evaporator with copper tubes & aluminium fins allowing for variable flow rates.
  • Hydraulic circuit includes an integral 3-bar pump, drain valve, overflow & water pressure gauge and process connections.
  • High quality scroll compressor Copper tube/aluminium fin condenser coils combined with axial condenser fans.

Reliability

  • Internal water bypass to protect the pump against deadheading.
  • Phase monitor to protect the unit against phase loss & reversal.
  • Galvanised, epoxy coated carbon steel structure.
  • Electrical panel protection rating.

Ease of Operation & Maintenance

  • Coil in-tank evaporator reduces the chance of blockages due to poor water quality.
  • Easy to remove and clean condenser filter.
  • Easy to use and externally visible advanced electronic controller.
  • Digital input for remote on/off control.
  • Volt-free contacts for remote general alarm signal Mains isolator.
  • Manual filling kit comprising atmospheric (open) expansion tank.

 Onsite Data Collection

  • Manufacturer MTA
  • Model TAE 081
  • Serial 1200807617
  • Year of Manufacture 1998
  • External Size (WxDxH): 750mm x 1740mm x 1350mm
  • Weight 310Kg
  • Manual

N.B. Refurb price is utilising the current R22 Refrigerant.

Former Standard Aerospace

This plant is one of several machines acquired during Standard Aerospace's reorganisation of one of their manufacturing facilities in the UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture of aircraft components,
but can provide a benefit to any industry.



pdf icon Print / Download Industrial Cooling Systems (ICS) TAE 081 Chiller Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
