Machines & equipment for sale

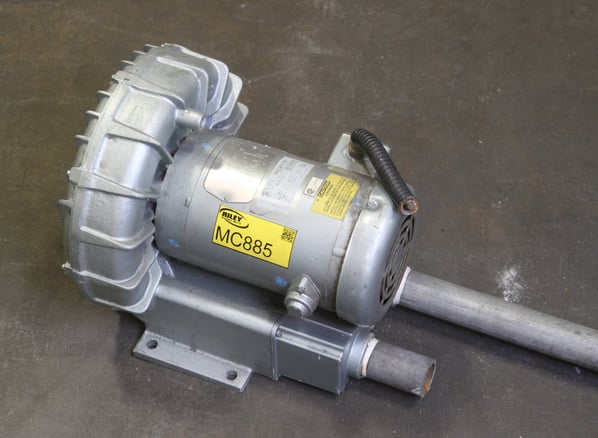

Gast MFG Corp Regenerative Air Blower

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Buy Now Price [?]
£ 75 (+ VAT)
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Login or Register to Buy Now

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
MC885
Manufacturer
Gast MFG Corp
Model
R5325A-2
Serial
F969
Capacity
Vac 117mbar : Pressure 125mbar
Process Application
Vacuum or Pressure Generation
Other Info
Noise Level 75dB(A) Max.
Location
Warehouse Clearance
Weight (kgs)
29.5
External Dimensions (WxDxH mm) [?]
372 x 344 x 351mm
Delivery
Your delivery options

Description

In a regenerative blower, the compression space consists of a hollow, circular ring between the tips of the impeller blades and the walls of the housing.

In operation, the rotating impeller draws in air from the inlet port into the compression space and moves it radially outward to the curved housing by centrifugal force. The action is called “regenerative” because a certain amount of air slips past each impeller blade during rotation and returns to the base of a succeeding blade for acceleration. Due to this principle, regenerative blowers can generate pressure and vacuum performance comparable to many multi-stage or positive displacement blowers.

Possible Pressure Applications

  • Bag packing equipment.
  • Pond aeration.
  • Vacuum conveying.
  • Air tables.
  • Plus many more...

Possible Vacuum Applications

  • Holding of materials for automated cutting machines.
  • Dust and chip collection
  • Automated product feeding
  • Soil vapour extraction
  • Aerobic sewage treatment
  • Plus many more...

Product Features

  • Rugged construction, low maintenance.
  • Oilless operation.
  • UL and CSA approved TEFC motors with permanently sealed ball bearings.
  • Automatic restart thermal protection on single-phase motors.
  • Aluminium blower housing, impeller, and cover.
  • Can be operated with no airflow through the unit.
  • Can be mounted in any plane.
  • Inlet and outlet have internal muffling.

Technical Details

  • Max. pressure - 65 inH2 O (60 Hz), 50 inH2 O (50 Hz) : 125 mbar (50 Hz), 162 mbar (60 Hz)
  • Max. vacuum - 60 inH2 O (60 Hz), 47 inH2 O (50 Hz) : 117 mbar (50Hz),  149 mbar (60Hz)
  • Max. air flow - 160 CFM (60 Hz), 133 CFM (50 Hz)
  • 1.86kW // 2.5Hp

pdf icon Print / Download Gast MFG Corp Regenerative Air Blower Datasheet

Auction Lots Descriptions and photographs are provided in good faith but may not be correct. It is the Customer's responsibility to ensure that the machinery is fit for the purpose for which it is purchased and safe for the purpose of use at work via physical inspection. All sales are deemed to be 'as inspected' and 'as is, in situ' even if the customer has waived the right to inspect.
