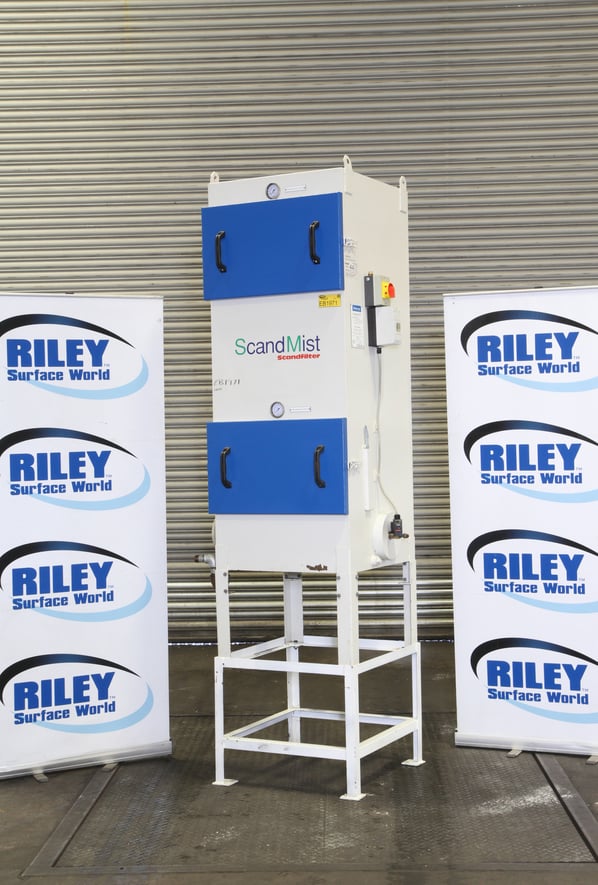

Vokes ScandMist Oil Mist Air Filter Unit

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
EB1971
Manufacturer
Vokes
Model
ScandMist MA100D
Year of Manufacture
2010
Serial
5156
Condition
From a working environment, Current Model
Approx Duty CFM / M³/Hr
590 CFM // 1000m3/Hr
Other Info
1.1kW motor : Pressure 2100Pa inlet 200Ø
Location
Warehouse Clearance
Weight (kgs)
160
External Dimensions (WxDxH mm) [?]
990 x 780 x 2570
Delivery
Your delivery options

Description

A heavy duty industrial air cleaner for effectively separating oil mists, oil fumes and emulsion mists during continuous operations. There are three filter stages with differential pressure gauges at each step.

The primary and secondary filters consist of various types and combinations of filter media and are designed specifically to handle the most demanding operating applications and processes. The unique structure of the filters allows for extreme loading of oil fumes and oilmist. The first filter stage collects the oil or coolant and allows it to drain back to the base of the unit. The filters do not absorb the oil but coalesce it until it is heavy enough to drain against the airflow back to the base of the unit and then into a suitable collector or the sump of the machine.

The second stage is designed to completely clean the air to a far higher standard than the surrounding air. Using the Hepa filter, this final stage ensures that any fine or sub-micron particles i.e. trace oil, smoke, bacteria, pollen and spores are trapped and not allowed to return to the surrounding atmosphere.

All ScandMist units are fitted with a HEPA filter rated H13. Servicing all the filters is made easy using a secure front hatch, and a system which employs a parallelogram, ensuring repeatable airtight sealing.

 Features

  • Differential Pressure Gauges for each filter step indicate the filter’s condition.
  • ScandMist units are equipped with a superior all-welded Radial Fan with backward bent blades.
  • 3 phase 440 Volt.
  • Silent built in fans (Less than 70dB (A)).



Full replacement filter set £350 approx.

pdf icon Print / Download Vokes ScandMist Oil Mist Air Filter Unit Datasheet
