Weber 4 Head Flat Belt Grinder / Sander with Built in Coolant and Filter System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition
Buy Now Add to Quote Contact Us
Stock No
PB1156
Manufacturer
Weber
Model
NLC-2/2-300
Year of Manufacture
1998
Serial
93.468.13
Condition
Good Condition
R.P.M.
3000
Hp/Kw
33kW // 44Hp
Other Info
Conveyor Belt Width 300mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2100
External Dimensions (WxDxH mm) [?]
2830 x 1960 x 2330
Delivery
Your delivery options

Description

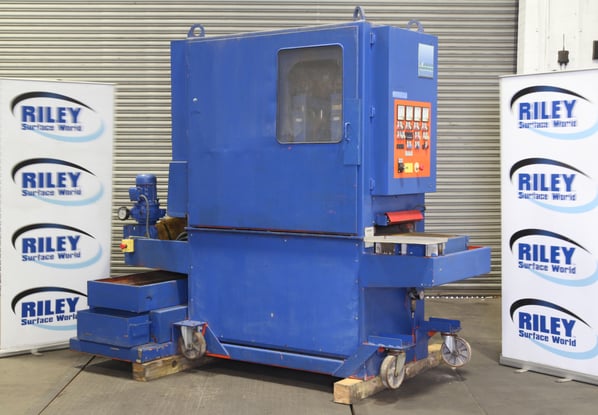

A Weber 4 head flat belt sander with built in coolant and filter system. Two driven grinding/sanding belts plus two driven brushes (latter two Supplied not fitted), with a variable speed work conveying belt and power driven height adjustment.

The unit is mounted on 4 wheels to aid movement with coolant tank and paper filter. The machine is currently set up with the two brushes removed and the two grinding/sanding belts in operation. Drive motors and ancillaries are all present to re-fit the brushes. Lifting eyes are fitted to the top of the machine. There is a powerful extraction fan mounted to the top of the machine to collect any dust particles after the brushing operation and channels this to a suitable dust collection system (not included).

Technical Details

  • Motor driven 4 Head system. Set up for 2 belts and 2 brushes. (Brushes 3 and 4 not fitted but supplied)
  • Motor driven table lifting and lowering.
  • Control voltage 230V.
  • Connected load 32kW.
  • 63Amp supply fuse requirements.
  • Variable speed belt control.
  • Sump tank with mesh belt and paper filter.
  • Coolant pump with multiple outlets.
  • A variety of spare sanding belts and drive belt.
  • DC Braking on 2 units.
  • Safety trip bar.
  • ~100mm table lift travel (throat capacity)

pdf icon Print / Download Weber 4 Head Flat Belt Grinder / Sander with Built in Coolant and Filter System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
