Romer Essential Electric Oven Range

Stock No

NEW082

Manufacturer

Romer

Condition

Brand New

Internal Size (WxDxH mm) [?]

Various

Max Temp

200°C

External Dimensions (WxDxH mm) [?]

Various

Delivery

Your delivery options

Description

200°C general purpose, electric, batch ovens from 3.4m³ upwards. Ideal for a vast range of low temperature thermal processes such as drying, curing and pre-heating where temperature recording is not required or processes are not temperature critical.

These "Essentials" model of our popular Romer Oven Range is mainly used for the general drying process of powder coating or any process where temperature recording is not required. Where a high specification is required try our Romer 200°C Industrial Oven with THPID smart controls.

These industrial ovens are from the well respected Polish manufacturer Romer and include upgraded controls and build features for the UK market, as designed by Riley Surface World.

Constructed from a heavy duty box sectioned frame with stainless steel chamber panels and externally clad in a hard wearing powder coated finish these ovens are built to last.

Conformity and accuracy is achieved by tried and tested electric heating panels feeding an air circulation system with adjustable hot air vents in the chamber walls.

Forced Air Circulation

These forced air circulation ovens (also known as mechanical convection ovens) use a fan to cycle air around the internal chamber, offering heating consistency for your precision heat application. The high air circulation rate per minute results in a tighter temperature uniformity. Riley Surface World can also provide convection ovens with no fan-assisted air circulation.

Typical Applications

• Powder coating curing processes
• Pre heating and low temperature heat treatments
• Thermal bonding
• Drying applications
• Thermal testing etc.

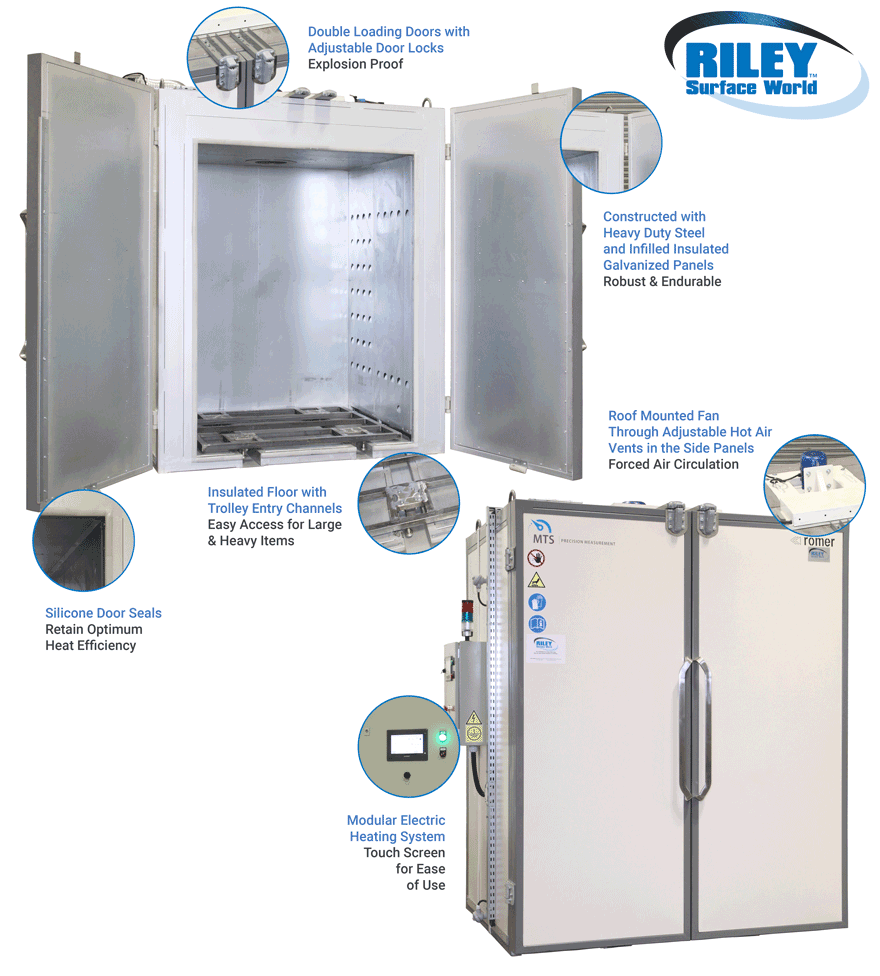

Benefits and Features

• Forced air circulation with roof mounted fan/s for easy maintenance.
• Multi-positional hot air return vents for uniform heat distribution.
• Temperature calibration is achieved by adjustable circulation inlets in the chamber side walls.
• Double wing loading doors with adjustable, explosion proof, slam shut positive door locks can be opened from inside the oven as a safety feature.
• Controlled and automatic exhaust damper for programmed fume ventilation, as you need for your process.
• Passive air ventilation and cooling (vents open to allow passive cooling).
• Forced air ventilation is available (ventilation fan blows cool air into the oven) .
• Explosion proof expansion dampers.
• Load/unload trolley & guide rails included.
• Constructed from 240mm insulation walls, 400mm insulation ceiling and heavy duty box section with a durable powder coated finish.
• Galvanized steel chamber.
• Modular electric heating system - Swiss made finned elements, easy access panel, and an innovative design offering instant heat generation.
• Flexible heat resistant door seals.
• CE Marked.
• 1 year manufacturer warranty

Controls

• Side mounted control panel with HMI display and an easy view status sounder and LED signalling tower.
• Built-in Over Temperature protection.
• PLC controlled with iCure 7" Touch screen HMI panel with programmable functionality.
• Easy to use, large colour touch panel, providing full control of all operational parameters.
• Save up to 20 programs and 10 consecutive triggers governing ramps, dwells, time and temperatures.
• Door limit sensors installed on the door to interrupt operation when door is opened.
• Emergency cycle restart after power loss.
• Built in calendar.
• Process memory review - internal memory for 20 cycles.
• Start timer - begin your process before you reach the factory.
• On-board energy consumption monitoring and recording.
• Process memory review .
• ModBus MASTER/SLAVE RS485 compatible.
• Two-channel temperature recorder.
• iCure PC analysis software.
• USB data export.

Available Sizes

Model	Temp °C	Size	Internal mm w x d x h
1.5x1.5x1.5	200	3.4 m³	1.5m x 1.5m x 1.5m
1.5x1.2x2.0	200	3.6 m³	1.5m x 1.2m x 2.0m
2.0x1.5x2.0	200	6.0 m³	2.0m x 1.5m x 2.0m
2.0x2.0x2.0	200	8.0 m³	2.0m x 2.0m x 2.0m
Custom	200	Custom	To suit your process

Options

If you order an oven designed and built to your specifications the following features are possible:

• Forced air ventilation - Programmable chimney opened automatically with an electrical actuator.
• Programmable variable frequency drive (VFD) fan speed.
• Chamber cooling system - Control the cooling rate of your process.
• Alternative heating options: Gas fired, LPG & Oil
• Stainless steel chamber.
• Front and rear opening doors.
• Dividing chamber (bulkhead).
• Heat hood to manage heat escape when opening the doors.
• Automated programmable extraction hood to extract unwanted gas byproducts when opening the oven doors.
• Electromagnetic door lock.
• Flooring options: insulated with guide rails (default), insulated without guide rails, non-insulated sheet & floorless.
• Separate control zones (bulkhead required)
• Component/batch temperature sensors.
• Ceiling mounted tracks (with hanging frame or rail mounted on trolleys).
• Material handling conveyors
• ATEX Rated.
• Built on legs (with or without optional two part trolley).
• Pull out shelves and shelving guides
• Viewing window in door 200mm x 200mm.
• Interior lighting.
• Solvent concentration measuring system.

You have the choice from two other Romer Electric Oven Ranges that offer additional features to the Essentials Range.

Romer 200°C Industrial Oven Range offers significant temperature recording and monitoring features. These allow for better control, performance and traceability during and after your process.

Romer 200°C Convection Industrial Oven Range offers chamber heating without using fans to move air. These radiant ovens are cost effective and particularly useful for cases where the process can't tolerate air movement in the oven chamber.

Romer - Experienced Oven Manufacturer

The outstanding feature of Romer ovens is the quality of manufacturing. Everyone who stands in front of a Romer, from buyers to calibration engineers, have commented how well constructed they are.

Romer have been manufacturing ovens and powder coating machines from their base in central Poland for over 25 years and export to 40 countries worldwide. Their 8,000m² facility employs over 150 staff and has passed Riley Surface World's inspection and auditing requirements.

Riley Surface World and Romer have secured a partnership to service the UK market with large (over 1m³) ovens up to 200°C. These ovens are perfect for curing powder coating but the range of applications is large.

Why are Ovens Essential for Powder Coating?

A popular process in surface finishing, powder coating is made up of three fundamental steps of preparation, application and curing.

The importance of the curing stage is what sets the layer to produce the durable qualities powder coating is known for. To cure the powder coating layer, a heat element is required to melt the layer initially, allowing the layer to flow & bond to form a solid coating. To cater for sizes of the components to reach temperatures of 160°C to 240°C, industrial ovens are essential as they offer the size & temperature requirements needed.

Print / Download Romer Essential Electric Oven Range Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
