Machines & equipment for sale

SNOL 1100°C - 1300°C Muffle Furnace Range

New

Price [?]
Please call on +44 (0) 1922 45 8000
Guarantee
1 year manufacturer guarantee
Availability:
Available subject to build time
Condition
Brand New
Stock No
NEW073
Manufacturer
SNOL
Model
LHM01
New or Used
New
Internal Size (WxDxH mm)
Various
Max Temp
1100°C, 1300°C

Brand New Machinery Sale.

10% off all Brand New Machinery, in stock or available to order, until the end of October and these machines are included
All the benefits of buying new are still available including warranties. See our sale page for details

Description

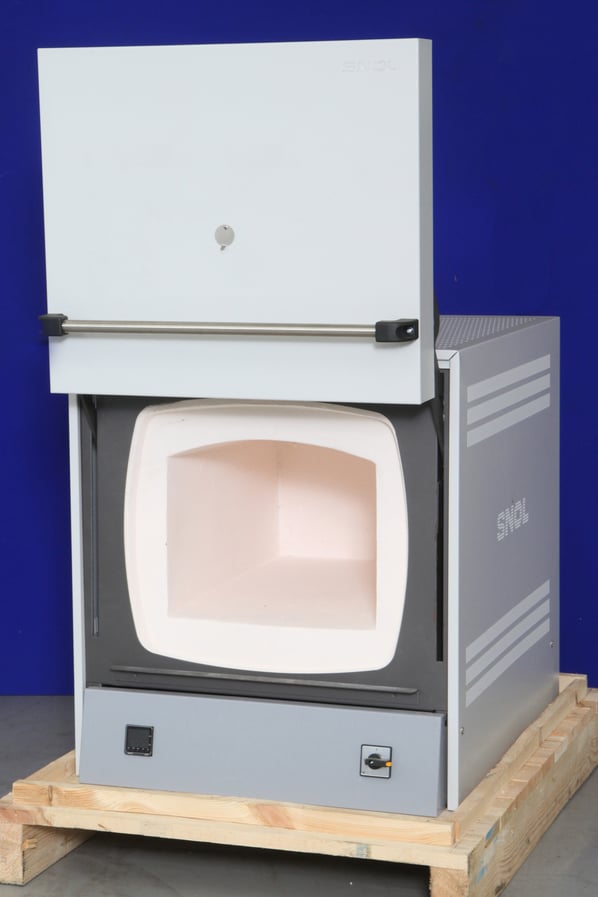

SNOL 1100°C - 1300°C Muffle Furnace Range

These electric furnaces ovens are designed for  material testing and heat treatment such as hardening, loosening, normalising ceramic and stoneware samples.

Available in a range of sizes and maximum temperatures of 1100°C or 1300°C these furnaces can be used in scientific laboratories, educational institutions, medicine and industry.

SNOL - a leading thermal engineering manufacturer

SNOLSNOL is one of the leading tool room and laboratory furnace manufacturers in the world. The company is based in Lithuania with subsidiaries in Germany, Russia, Belarus and Ukraine. Founded in 1960 SNOL and is part of the Baltic State's largest metal processing group, employing over 700 people. 90% of production is exported from Lithuania into 40 countries in Europe and worldwide.

Riley Surface World and SNOL is a unique partnership. It combines Europe’s finest industrial and laboratory oven manufacturer with a UK company renowned for its high levels of industry knowledge, service and technical support.

SNOL tool room furnaces are available from stock or by special order, depending on requirements for temperature, size and metal treatment process.

Applications

Designed for material testing and heat treatment such as hardening, loosening, normalising ceramic and stoneware samples

Features include

  • 1100°C & 1300°C maximum operating temperature
  • 3 - 39 litre chamber volumes
  • One piece high thermal efficiency vacuum-formed ceramic fiber chamber
  • Multiple, free radiating, wire wound, heating elements are embedded in vacuum-formed fiber in four sides around a chamber
  • Fan-assisted chimney for smoke and humidity extraction
  • Continuous air change in the chamber
  • Door opening options; up sideways or down. depending on model
  • Front opening ‘up and away’ vertical lifting doors keep the heated door surface away from the operator offering increased operator comfort and safety
  • Door safety switch
  • Microprocessor – controlled thermoregulator
  • Outside casing – metal sheet, powder painting grey
  • Hard ceramic hearth fitted as standard
  • High quality, ecological thermal insulation material
  • Low electric power consumption
  • Short heating up/cooling down period
  • High degree of accuracy
  • 1 year warranty

Available Options

  • Process observation window (Ø 35 mm) up to 1100 °C
  • Fan-assisted chimney for air extraction
  • Digital timer
  • Protection against overheating
  • Data recorder
  • Protective gas atmosphere
  • Chamber Furnace Range

Available Sizes

ModelTemp °CSizeDoorInternal mm w x d x h
SNOL 3/1100 LHM0111003 litresOpens Up120 x 200 x 105
SNOL 8.2/1100 LHM0111008.2 litresOpens Up195 x 310 x 135
SNOL 8.21100 LSM0111008.2 litresOpens Sideways195 x 310 x 135
SNOL 8.2/1100 LZM0111008.2 litresOpens Down195 x 310 x 135
SNOL 13/1100 LHM01110013 litresOpens Up220 x 335 x 170
SNOL 22/1100 LHM01110022 litresOpens Up280 x 500 x 160
SNOL 39/1100 LHM01110039 litresOpens Up320 x 495 x 230
SNOL 6.7/1300 LSM0113006.7 litresOpens Sideways145 x 310 x 135
SNOL 10/1300 LHM01130010 litresOpens Up190 x 335 x 170


Fully factory assembled and tested

The equipment is, fully factory tested and adjusted prior to shipment from the manufacturer. All safety interlocks are checked for proper operation and the equipment is operated at its maximum operating temperature for a test period. If a temperature uniformity profile test and certification is purchased, the profile test will be performed and documented prior to shipment.

Customers are invited and encouraged to visit our site to witness testing and sign off the equipment prior to shipment. During this visit, personnel are available to demonstrate, and answer any questions you may have concerning design, operation, and maintenance.

pdf icon Print / Download SNOL 1100°C - 1300°C Muffle Furnace Range Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
