Machines & equipment for sale

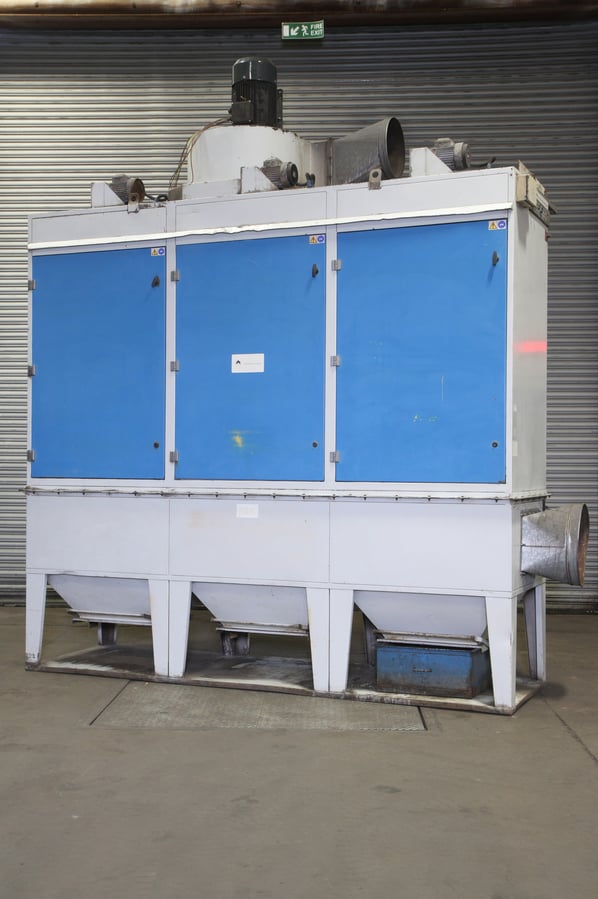

Nederman Airmaster Auto M90E/11 Air Filter Unit

Special Offer

Refurbished Price [?]
£ 8,500 (+ VAT)
Special Price
£ 7,250 (+ VAT)
Special Price (sold as seen) [?]
£ 4,950 (+ VAT). Available for immediate collection.
Special offer ends
06 September 2018 15:00 GMT while stocks last
Stock No
EV1491
Manufacturer
Nederman
Model
AUTO M90E 11.0
Serial
981194261
Approx Duty CFM / M³/Hr
5000//8500
Filter Area ft² / m²
900//90
Other Info
Outdoor Suited Unit
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
3730 x 1300 x 4220

Description

The Nederman Auto M series is a robust simple mechanically cleaned bag dust collectors suitable for non-continuous duty for industrial, commercial and educational locations.

The dust collector is neat, compact, unobtrusive and has an easy to clean the exterior which is of a robust constructed weatherproof welded steel design.

Technical Parameters:

  • Maximum working temperature 80ºC
  • Maximum negative pressure 4000 Pa
  • Maximum positive pressure 1500 Pa
  • Filter area 90 m²
  • Wide range of filter materials to suit most applications
  • Integral, high efficiency 11kW fan
  • Versatile inlet connections
  • All electrical connections pre-wired to terminal box on unit

Typical applications

  • Metalwork, grinding, fettling, sanding, polishing
  • Woodwork, centralised dust extraction from small and medium workshops
  • Bulk powders, chemicals, sack tipping, weighing, bagging
  • Educational workshops - ceramics, metal work, crafts and woodwork
  • All access for maintenance is accessible from the front of the unit
  • No need for expensive compressed air circuits
  • Efficient, automatic electric shaker cleaning mechanism
  • Weather-proof for positioning outdoors of required

Technical data

Applications Dry dust
Certifications CE, EX
Dustbin volume (l) 3 x 75
Filter cleaning method Mechanical bag shaking
Installation Outdoor, Indoor

Electrical data

415 volts - 50Hz -12.5 Amps - 3 phase + N

pdf icon Print / Download Nederman Airmaster Auto M90E/11 Air Filter Unit Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
