Carter Environmental CF Dry Dust Collector

Special Offer

Refurbished Price [?]
£ 7,950 (+ VAT)
Special Price (sold as seen) [?]
£ 2,950 (+ VAT). Available for immediate collection.
Special offer ends
14 December 2017 14:00 GMT while stocks last
Stock No
EU1339
Manufacturer
Carter Environmental
Model
CF Dry Dust Filter
Approx Duty CFM / M³/Hr
4000 - 6000 // 6800 - 10,000
Filter Area ft² / m²
1330 // 130
Other Info
Adaptable filters & fan options
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2900 x 1800 x 4750

Description

Carter Environmental CF Dry Dust Filter

Cartridge Barrier filter with reverse pulse jet cleaning mechanism.

The CF extractor has a twin row of hoppers nominally 2900mm in length to suit the required fabric area of 130 m³/hr spread over 24 pleated 1.5mtr long cartridges.

The Carter range of barrier filters offers complete filtration solutions with various fabric and coating options to suit every application and duty that can be thrown at it.

The Carter dust filters provides a self cleaning mechanism for continuous operation without the need to shut down the process by use of a pulse generator control panel that will fire bursts of compressed air down each of the filters sequentially cleaning them even when the plant is still running.

The body of the unit incorporates a pre-separation chamber which helps knock out the larger sized dust particles and reduce the energy of the finer dusts which in turn protects the filters from abrasive dusts and prolongs their lifespan.

The waste dust then falls from the hopper and is directed into one of the two removable bucket bins for ease of disposal.

Carter Dry Dust Filters Features

24off Ø200 x 1500 mm long pleated cartridges.

available in either:

Fabric – A wide range of standard fabrics are available:

  • Polyester Needlefelt
  • P84, PTFE & Teflon
  • Operating temperatures up to 150°C
  • Higher temperatures with specialised high performance fabrics

Filter Coatings – Various coatings, membranes and treatments can be applied to the filter media:

  • Assist dust release
  • Antistatic coating- prevents sparks
  • PTFE membrane
  • Water & Oil repellent coatings
  • Further options

Cleaning Mechanisms benefits

  • Reverse Pulse Jet cleaning for continuous operation
  • No need to shut the process down.

Currently fitted with an independant external Halifax centrifugal fan with an 11kw / 2900rpm motor.

Fan size - 1650 x 1250 x 1000mm

pdf icon Print / Download Carter Environmental CF Dry Dust Collector Datasheet

Additional files

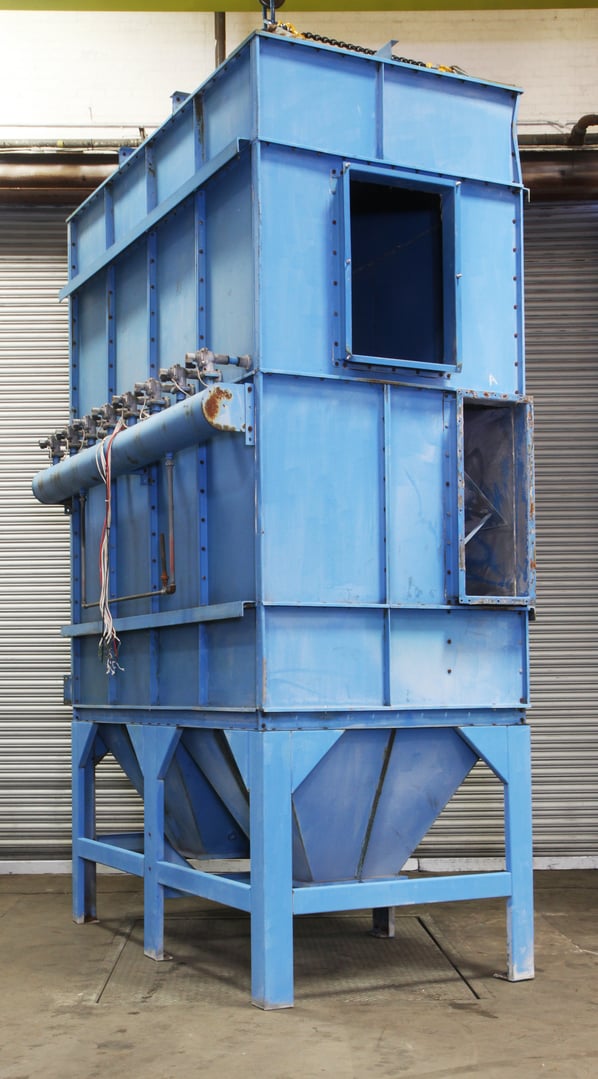

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
