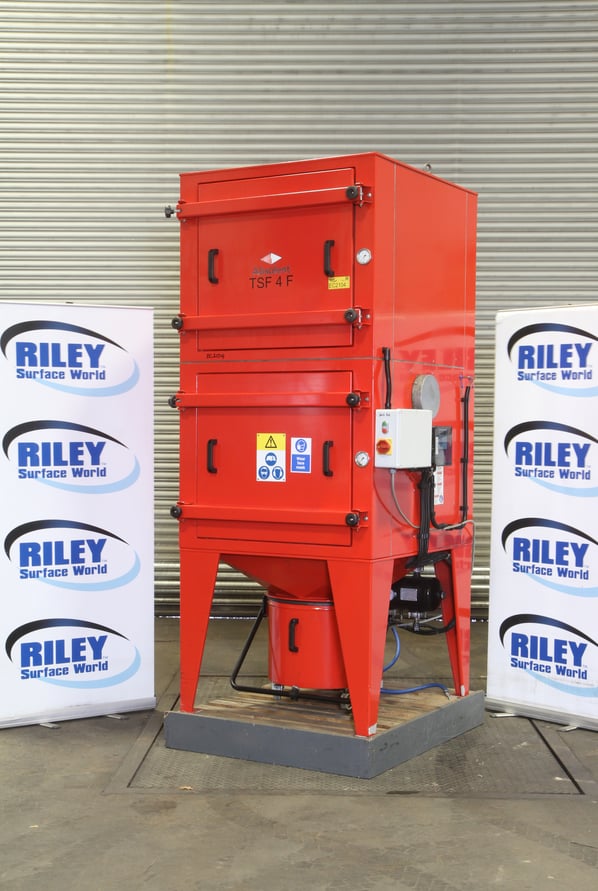

Absolent Reverse Pulse Cartridge TSF 4F Down Flow Dry Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EC2104
Manufacturer
Absolent
Model
TSF 4F
Year of Manufacture
2008
Serial
0809161
Condition
From a working environment, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
1470CFM // 2500M3/hr
Filter Area ft² / m²
333ft2 // 31M2
Other Info
Secondary Hepa Filter
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
600
External Dimensions (WxDxH mm) [?]
1150 x 1200 x 2500
Delivery
Your delivery options

Description

The Absolent type A•dust4F Dust filter is based on the latest and most efficient filter technology. With long service intervals, easy installation and servicing, this dust extractor can filter air volumes up to 2500m³/h.

Operation

  • The dust-laden air is sucked into the upper part of the filter.
  • The heaviest dust particles fall directly into the dust container.
  • The air is sucked into the filter cartridges, whereas most of the remaining particles stick on the outside of the cartridges.
  • The cleaned air goes through the fan into the HEPA filter, with a guaranteed and consistent collecting efficiency of 99.99% arresting 0.3µm dia. particles.
  • The HEPA filter has a pressure gauge that shows when the cassette should be replaced.
  • Whenever the pressure drop across the filter cartridges exceeds a pre-set limit value, the valves in the tank for cleaning air open and a pulse of compressed air (approx. 4 Bar) is discharged into the filter cartridges from the cleaning nozzles (1 nozzle per filter cartridge).
  • The compressed air pulse causes the dust collected on the filter surface to loosen and fall down into the dust container.

Specification

  • Down flow design to maximise particle separation.
  • Automatic reverse pulse cleaning allows continuous operation.
  • Secondary Hepa filter.
  • Integrated fan and motor.
  • Pressure gauges for reading pressure drop across the filters.
  • Air inlets, left or right hand side, Ø200mm.

Technical Data

  • Max permissible air volume: 2500M³/Hr  (1470CFM)
  • Sound level (operation/cleaning): 67/84dB(A)
  • Weight (clean cartridges): 600kg
  • Available dim. ext. pressure drop 900 Pa
  • Number of cartridges: 4
  • Total cartridge filter area (cartridges): 31m²
  • Hepa filter area: 24m²
  • Dust collection bucket: 2.75ft³

Fan Data

  • Motor output: 4,0 kW (5.25Hp)
  • Rated current (3-Phase): 7,41 Amps
  • Power supply (3-Phase): 400V
  • Speed: 2910rev/min

The fitting of an explosion relief panel can be undertaken for approximately £1,200. Please ask for details if required.

N.B. Refurb machine will include the existing Hepa Filter

pdf icon Print / Download Absolent Reverse Pulse Cartridge TSF 4F Down Flow Dry Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
