Guyson International T40 Suction Venturi Tumble Blast Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
SC1016
Manufacturer
Guyson International
Model
T40 Tumble Blast
Year of Manufacture
Unknown
Serial
T42822
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
Ø500 x 200 Basket (No Basket Included)
Work Handling Method
Manual Load : Auto Tumble Blast
Other Info
Barrel Blast C/W Variable Speed Drive
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
900 x 775 x 1700+850 x 875 x 1150 Dusty
Delivery
Your delivery options

Description

A Guyson T40 Tumbleblast is for suction venturi blasting bead and grit when surface processing batches of small metal components. Tumbling the components inside a rotating drum whilst being blasted to achieve the required surface finish.

Applications

  • The Tumbleblast system is ideal for cleaning, deburring, de-flashing, cosmetic finishing or surface treatment on small metal components such as aerospace fasteners, screws, bolts, nuts, washers, circlips, carabiners etc.
  • Guyson's T40 Tumbleblast machine offers highly effective batch blast finishing of small components.

Process

  • The components are loaded into the process barrel whereby they are gently rotated exposing all faces to the constant blast stream from the blast gun. A variable tumble speed is set via the control panel dial.
  • The blast cycle is controlled via a process timer offering consistent and repeatable results.
  • Once the blast exposure time has been achieved a second timer is automatically employed to air wash the parts free from any dust and blast media.
  • Once the full cycle has been completed the barrel is removed and the parts tipped out ready for the the next operation.

The T40 System Offers

  • Fast cycle times.
  • Variable speed barrel rotation.
  • Repeatable process quality.
  • Safe and easy to operate.
  • Can be upgraded to use two blast guns.

Details

  • Max Load -  35kg
  • Package Size (WxDxH) - 700mm x 1100mm x 1880mm
  • Number of Blast Guns - 1
  • Number of Blow Off Guns - 1

Dust Extractor DC80

  • The matched dust extractor is an 8 bag system with a manual shaker for dislodging particles into the dust collection drawer at the base of the unit.
  • Pressure gauge to indicate when the bags need cleaning.
  • Internal fan
  • Manually adjustable inlet/outlet vents.

pdf icon Print / Download Guyson International T40 Suction Venturi Tumble Blast Machine Datasheet

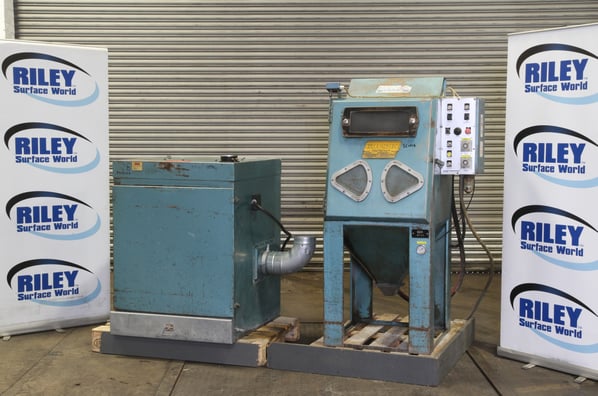

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
