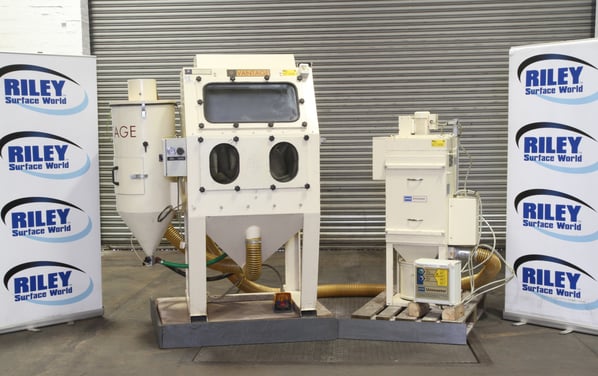

Abrasive Developments Ltd. Vantage Blast Cabinet With Cyclonic Separation Feed Hopper and Free Standing Dust Control Plant

Stock No
SC1006
Manufacturer
Abrasive Developments Ltd.
Model
Vantage
Condition
Seen working by RSW, Excellent Condition
Work Envelope (WxDxH mm) [?]
950 x 800 x 700
Work Handling Method
Trolley +Table (Option to fit Load End)
Other Info
Precise and powerful blast cabinet
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
310 + 110
External Dimensions (WxDxH mm) [?]
1465 x 1000 x 1880 900 x 600 x 1465
Delivery
Your delivery options

Description

This Vantage venturi shot blast cabinet comes with a side-mounted cyclone recovery unit and a free standing Unimaster dust control unit. Designed for the discerning customer who requires quality equipment with excellent productivity, process control, environmental containment and durability.

  • This shot blasting equipment offers a faster alternative to labour intensive operations such as hand deburring, scraping and wire brushing, chemical cleaning, acid etching or dipping, liquid honing, knife trimming, sanding, grinding and many others.
  • A manually operated rotary table is mounted on a loading/unloading trolley. (load end platform is required.)
  • Foot pedal operation.
  • Adjustable air pressure for vibrator, blow off gun and main operating pressure.

The Vantage Cabinet Features:

Safety

  • Full-length, wear-resistant neoprene gloves to protect the operator.
  • Ceiling-mounted, light fixture for extraordinary visibility.
  • Safety interlock fitted to the door to prevent opening when in use.
  • Heavy-duty, door latch seals doors tight through years of service.
  • Rotary table mounted on a pull out, rail mounted trolley.

Productivity

  • 3 mm gauge steel all-welded construction, with strength breaks to form a rigid, long-lasting cabinet shell.
  • Large viewing window.

Convenience

  • Abrasive-resistant lined cabinet.
  • Pressure regulator and pressure gauge,  mounted within easy reach.
  • Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.
  • Fitted rotary table.
  • Shuttle slide in and out table.

Common Applications

  • Remove rust, mill scale, heat scale, and carbon build up from metals.
  • Strip paint, powder coating, plating, and anodizing from parts for rework.
  • Eliminate burrs, parting lines, flashings, and other defects from castings and injection-moulded parts.
  • Extract residual sand from castings.
  • Beautify steel, stainless steel, aluminium, brass and other metals with a uniform matte finish.
  • Etch artwork and lettering into glass, stone, plastics, metal and other materials.
  • Clean release agents and material build up from moulds.

Complete with suitably sized DCE dust control unit (UMA 40)

  • 0.55kW.
  • Explosion relief panel.
  • Shaker motor operated cleaning system.
  • Approx. duty of 400CFM  //  680M³/Hr
  • Filter area 40ft²  // 3.7M²

pdf icon Print / Download Abrasive Developments Ltd. Vantage Blast Cabinet With Cyclonic Separation Feed Hopper and Free Standing Dust Control Plant Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
