Morrisflex RJH Dual Speed, Double Motor, Double Spindle Polishing Lathe

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
PC1183
Manufacturer
Morrisflex
Model
Bull, Duel Speed, Twin Spindle
Serial
13399
Condition
Seen working by RSW, Good Condition, Seen powered at RSW
R.P.M.
3,000 and 1,500
Hp/Kw
4hp / 3hp
Other Info
Independent Ends each with Foot E Stop
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
250
External Dimensions (WxDxH mm) [?]
1460 x 920 x 1160
Delivery
Your delivery options

Description

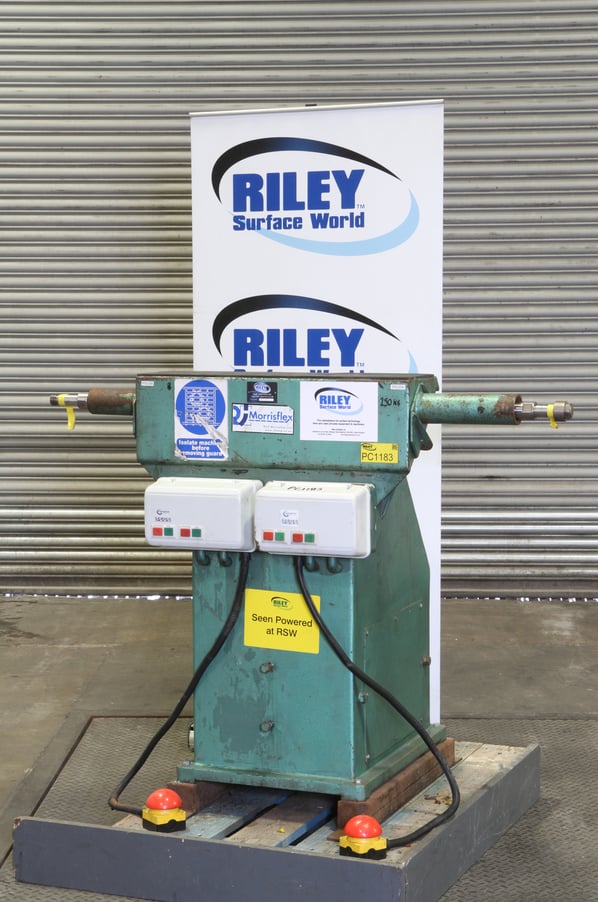

A Morrisflex heavy-duty, independently controlled double-sided, free-standing, pedestal-mounted polishing machine. This will allow for two polishing operators to work independently of one another at the same time, additionally with its two speed drive motor and individual belt drives.

A polishing lathe is predominately used with polishing mops, buffs and bobs, but can also be used with a wide range of rotary abrasive tools, i.e. abrasive impregnated nylon wheels, abrasive brushes, flap wheels, deburring wheels, wire wheels, etc.

The body of the machine is manufactured from cast material. The installed twin spindles are powered by robust high torque motors offering low maintenance with long life, together with double bearings for each spindle, this makes them suitable for a wide range of applications and materials.

Features

  • This machine has a  press button stop/start control for each spindle and each speed.
  • 4 Hp and 3Hp drives for 3,000 rev/min and 1,500 rev/min.
  • Belt Driven for ease of maintenance.
  • Independent twin spindles.
  • 415V - 3pH & neutral.
  • Individual belt tensioner adjustment.
  • E-stop buttons for each motor.

Benefits

Independent ends reduce power consumption whilst being used by a single operator and allow two operators to work simultaneously and independently of each other.

Features & Specifications.

  • Motor sizes: 4.0Hp/ 3.0Hp motors.

Optional Extras That Can Be Fitted:

  • Dust collection hoods.
  • Dust extractor.

pdf icon Print / Download Morrisflex RJH Dual Speed, Double Motor, Double Spindle Polishing Lathe Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
