Machines & equipment for sale

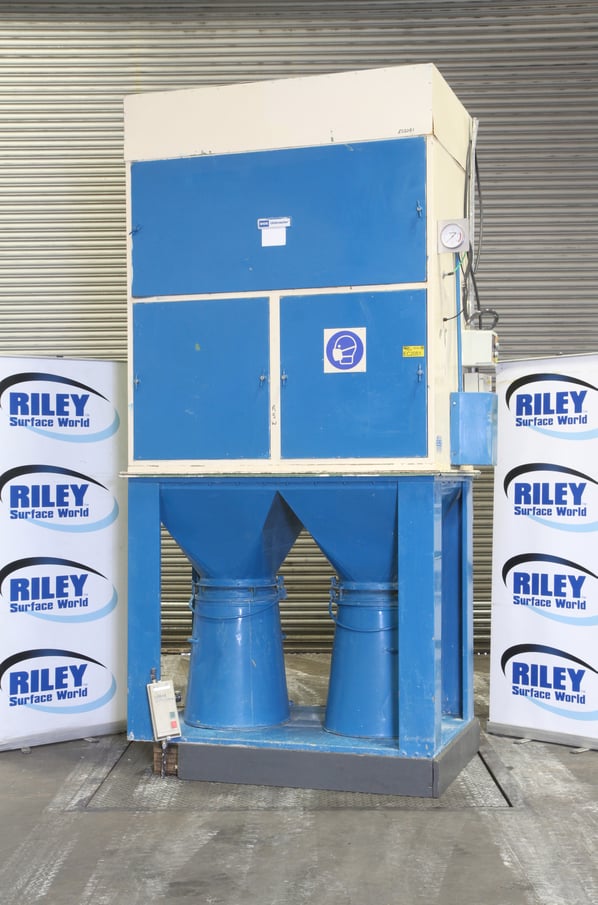

Donaldson Torit (DCE) Dust Extractor UMA 458 G10, Bag Shaker Dust Filter Plant

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Refurbished by RSW, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EC2051
Manufacturer
Donaldson Torit (DCE)
Model
UMA 458 G10
Serial
193758
Condition
Refurbished by RSW, Good Condition
Approx Duty CFM / M³/Hr
3250//5525
Filter Area ft² / m²
450//42
Other Info
ATEX Explosion Relief Panel fit @ c£1200
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
560
External Dimensions (WxDxH mm) [?]
1750 x 1400 x 3120
Delivery
Your delivery options

Description

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker system, and system controller, making installation quick and easy.

This pre-owned DCE Unimaster 458 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service. The compact design provides a quiet operation with efficient, trouble-free service.

Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design Features

  • Compact design minimises floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation,  5.5kw  // 7.5Hp motor fan are enclosed in collector housing to minimize noise.
  • Easy maintenance.
  • 2 x 4ft³ collection buckets.
  • Quick-release bucket levers allow for easy removal and maintenance of the bin.
  • The inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils, Inserted into filter bags keep bags open to maximize airflow and assist in knocking the dust off during the cleaning cycle.
  • Pressure differential gauge.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

What are Shaker Dust Collectors?

Shaker Dust Collectors contain a number of woven bags, which are fixed onto rails and use their surface area to capture dust as it is drawn through the extraction unit by its fan.

Bags are periodically cleaned by rapidly shaking the bags through a shaker motor and linkage system which removes the filtered dust from the bags and into a collection bin.

These units are commonly used in foundries, steel mills, the mining industry, power plants, and smelting industries.

pdf icon Print / Download Donaldson Torit (DCE) Dust Extractor UMA 458 G10, Bag Shaker Dust Filter Plant Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
