Lakestyle Downdraft Bench

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EA1893
Manufacturer
Lakestyle
Model
18 DD S
Condition
From a working environment, Good Condition
Other Info
850 x 640 Grill dims
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
83
External Dimensions (WxDxH mm) [?]
1500 x 900 x 900 (1510 with canopy)
Delivery
Your delivery options

Description

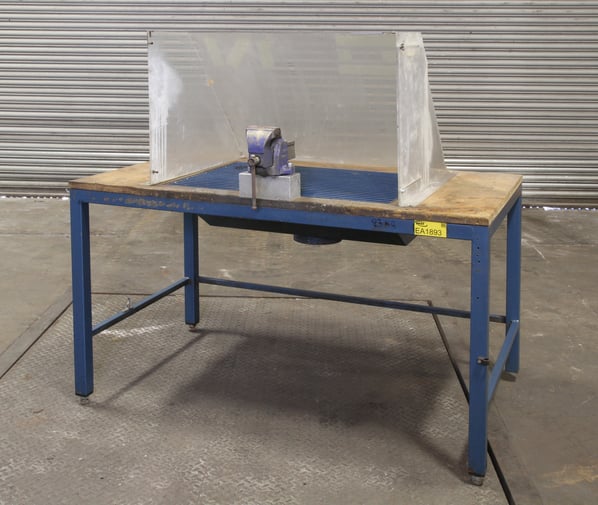

Lakestyle down draft fettling booth for the control of dusts from manual grinding, fettling, fiberglass and composite materials trimming type operations. Fitted with an 4" record engineering vice.

The fan-less downdraft tables are designed to provide efficient capture of dusts, fumes, and gas/vapours generated from a variety of manufacturing operations and processes such as:

  • Buffing
  • Grinding,
  • Sanding,
  • Cutting,
  • Polishing,
  • Gluing,
  • Bonding,
  • Mixing,
  • Certain welding applications.

They are typically used on applications where work is done on a table and contaminants are generated close to the work surface. Contaminants generated during operations are drawn through the openings in the table top into the plenum base where larger particles and debris (if generated) will fall out of the air stream.

Remaining airborne contaminants are drawn into the duct connected to the back of the table and are exhausted outside or to an optional filtration system for removal.

The industrial grade downdraft tables addresses indoor air quality issues in the workplace by:

  • Reducing the risk of operator exposure to harmful substances.
  • The capture of metal dust from deburring/grinding; welding smoke capture; fume and vapor reduction.
  • Drawing polluted air away from operator breathing zones.
  • Flexible to accommodate various sizes and types of production equipment.
  • Increasing employee and operator safety and comfort levels.
  • Operating at a comfortable noise level.
  • Being equipped with high efficiency filters for effective air cleansing.

pdf icon Print / Download Lakestyle Downdraft Bench Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
