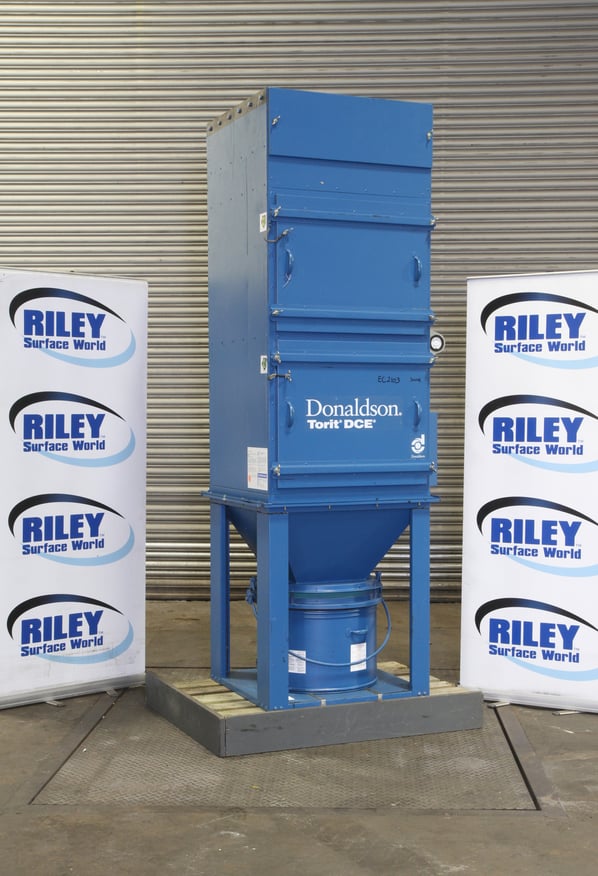

Donaldson Torit (DCE) Unimaster UMA 153 K7 ATEX Rated Dust Extraction Unit

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EC2103
Manufacturer
Donaldson Torit (DCE)
Model
UMA 153 K7
Year of Manufacture
2008
Serial
00031505
Condition
From a working environment, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
1000 // 1700
Filter Area ft² / m²
150//14
Other Info
ATEX Rated Explosion Panel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
300kg
External Dimensions (WxDxH mm) [?]
1000 x 920 x 2590
Delivery
Your delivery options

Description

The Donaldson Torit® DCE® Unimaster dust collector is an economical and effective solution suitable for a wide range of applications including abrasive blasting, polishing and buffing, grinding, packing of tea or detergents, weighing and mixing of paint pigments, food processing applications and a host of other operations where nuisance dust is generated.

The Unimaster dust collector reduces airborne contaminants from the working environment and helps improve air quality for your employees and product quality for your customers. Effective dust control is guaranteed.

Unimaster is a compact shaker-type, intermittent duty collector with a wide variety of configurations and filter bag materials.

Main Features:

  • Dust capture at all manufacturing points and flexibility of operation.
  • Secondary Filter (HEPA tbc).
  • Compact design with flat envelope shaped multipad filters for high capacity.
  • Range of fabrics available for filter to suit applications.
  • Advanced 3.0kW fan design with reduced noise levels.
  • ATEX rated explosion relief panel and access door explosion locking bars.
  • Sound reducing hood.
  • Multi-position inlet manifolds.
  • Easy to install/connect and service.
  • No requirements for compressed air.

Versatility and Dust Capture at All Points

Highly adaptable, the Donaldson Torit DCE Unimaster dust collector is ideal for intermittent operations in plant processes. Several space-saving units can be placed at dust generation points resulting in total dust capture from the manufacturing processes.

Efficient Filtration Operation with Cost-Effective Self-Cleaning Cycle

Utilising high-performance of Unimaster filters, contaminated air is drawn in through the inlet to the filter by the fan. Initially during the pre-separation, some of the heavier dust particles lose momentum and fall into the hopper.

Finer dusts are carried up to the filter elements and retained on the outer surface of the filter fabric. The cleaned air passes through the filter fabric into the fan chamber and is discharged. At the end of the process or of a shift the fan is switched off and the filter fabric cleaning cycle commences: Dust is dislodged from the filter elements and falls into the collector. This cleaning cycle requires no compressed air, reducing the services required and operating costs.

** Please note images are not Riley's. Professional industrial images to follow **

pdf icon Print / Download Donaldson Torit (DCE) Unimaster UMA 153 K7 ATEX Rated Dust Extraction Unit Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
