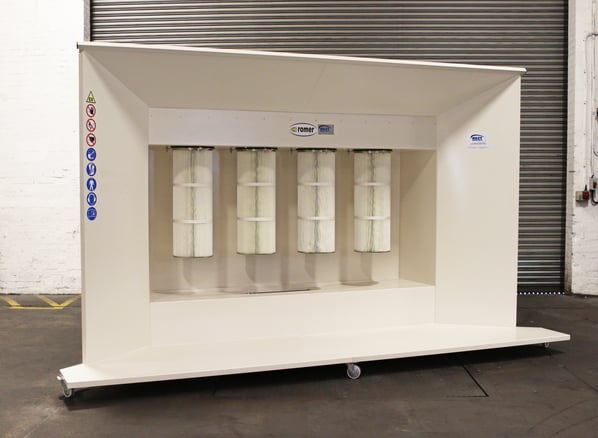

Romer KPO-4N Powder Coating Booth


- Stock No
- GC864
- Manufacturer
- Romer
- Model
- KPO-4N
- Year of Manufacture
- 2023
- Condition
- Brand New, Unused, Current Model
- Work Envelope (WxDxH mm) [?]
- 4000 x 920 x H2200mm High
- Process Stages
- Single Stage
- Other Info
- 4 Cartridge filters / HMI screen
- Location
- Arriving in our warehouse soon
- External Dimensions (WxDxH mm) [?]
- 4050 x 1620 x H2560mm High
- Delivery Your delivery options
Description
The Romer range of spray booth allows for the application of painting multiple components by hand directly placed on the work table or suspended from the trolley rail.
Features of the KPO range of manual booths
Explosion-proof Construction
These ATEX compliant booths are carefully designed to prevent explosive mixes from the process of powder application. Every single component is carefully selected to minimise the risk of fire.
Romer HMI Panel
The latest booths have now been equipped with a touchscreen multilingual HMI panel allowing the parameters of operation and filter cleaning to be easily set and adjusted by the operator
Aluminum Fans
Aluminium fans are safer to use than standard steel fans as they in themselves won't cause sparks to appear within the metal casing. Thanks to their low weight they also consume less energy and thus less costs. They are also very quiet working at a noise level of 74-dBa, with the motor being hidden inside the booth housing making the booth even lower in height.
Sealed Filter Installation
Thanks to the use of supporting flanges installing and uninstalling the filter elements is made easy. The design of the filter with multiple securing locations provides a tight seal which improves the quality of the filtration process and face velocities within the booth.
Automatic Filter Cleansing
ROMER's booths are equipped with an electronic automatic filter pulse cleaning system. The booth control system has an adjustable timer for both the cleaning interval and the time of the impulse so that the filters are automatically cleaned whilst in use to maintain the extraction rate of the booth in an optimum condition.
We know from experience that it's hard to expect an operator to clean the filters regularly, but thanks to this system the operator won't have to worry about it anymore.
Reverse Pulse Cleaning
The Romer powder booths are equipped with integral pressure reservoirs, which are responsible for the storage of air needed to clean the filter. Compressed air is released from the tank in a fraction of a second while passing through the ROMER JET ™ system which expands the filter at high velocity and escapes through the micro holes in the filter with the powder then falls to the floor booth.
The ROMER JET ™ system is patented and ensures the cleaning of the whole filter from top to bottom, this provides a unique cleaning effect, unattainable in the past using simple Jet venturi for example
Powder Recovery
By recovering the sprayed materials you save money. Collecting the powders in the base allows you to reuse the powders, whether it be directly to storage, the powder can be fed to the spray equipment (powders should be sifted before using it again).
Without Recovery
The powder falls to the floor of the unit which can then be disposed of as required. Particularly suited to operators using multiple colour spraying where the powders would not be reusable.
Filter Elements
The thickness of the material that the filters are made from is 260g/m². Polyester filters, not cellulose.
Additional Features
The booth is supplied with a compressed air regulator that feeds not only the reverse pulse cleaning, but also the dual quick connection valves for the connection of your powder spraying equipment and blow down gun. Adjacent to the quick connection valves is a blowdown valve to assist in the removal of any moisture that may accumulate within the on-board pressure vessel.
Details
Model | KPO-4N |
Work size dimension | W4000 x H2200 x D920 |
External dimensions | W4050 x H2560 x D1620 |
Filters | 4 |
Nominal power | 4.4kW |
Nominal voltage | 380 - 415V |
Noise | 79dBa |
Air volume | 20,400m3/h |
Romer - Experienced Powder Coating Manufacturer
The outstanding feature of Romer ovens is the quality of manufacturing. Everyone who stands in front of a Romer, from buyers to calibration engineers, have commented how well constructed they are.
Romer have been manufacturing ovens and powder coating machines from their base in central Poland for over 25 years and export to 40 countries worldwide. Their 8,000m² facility employs over 150 staff and has passed Riley Surface World's inspection and auditing requirements.
Riley Surface World and Romer have secured a partnership to service the UK market with large (over 1m²) ovens up to 225°C and powder coating equipment.
Print / Download Romer KPO-4N Powder Coating Booth Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
