Machines & equipment for sale

Electro Brightening Plant

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
07 December 2023 15:00 GMT while stocks last
Part of a Direct Site Clearance
Hydro Aluminum Anodising & Brightening Finishing Plant
Condition
From a working environment, Good Condition, Current Model
Location
Gloucester, Uk
Buy Now Add to Quote Book Appointment
Stock No
HYD925
Model
Electro Brightening Plant
Year of Manufacture
2013
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
3 x 3m Varied Widths (see images)
Process Stages
12
Other Info
High Specification Transporter Included
Location
Gloucester, Uk
External Dimensions (WxDxH mm) [?]
See Layout drawing
Delivery
Your delivery options

Description

Electro Brightening Plant consisting of a number of High quality Large 3m x 3m Stainless Steel and Polypropylene Process & Treatment Tanks

Quantity of Tanks: 11 (some single /some double)
Suitable as a complete line, or to upgrade existing plant
Associated Lip Extraction Ducting may also be available

  • Tank 1: Brightening Station (Stainless Steel)
  • Tank 2: Warm Brightener Rinse (Stainless Steel)
  • Tank 3: Brightener Rinse (Polypropylene)
  • Tank 4: Desmutt (Stainless Steel)
  • Tank 5: Dirty Desmutt Rinse (Polypropylene)
  • Tank 6: Clean Desmutt Rinse (Polypropylene)
  • Tank 7: Clean Alkaline Rinse  (Polypropylene)
  • Tank 8: Dirty Alkaline Rinse  (Polypropylene)
  • Tank 9: Etch A (Stainless Steel)
  • Tank 10: Etch B (Stainless Steel)
  • Tank 11: Cleaner (Polypropylene)
  • Tank 12: Loading

Chemical Polishing
Chemical Polishing produces a bright, reflective surface on a wide range of alloys based
on aluminium of commercial, or higher purity by a simple dipping operation.

The degreeof brightness obtained is superior to that produced by mechanical polishing, and fine
scratches and other imperfections are removed. Chemical polishing is an essential
operation in the production of bright anodising for automobile parts and consumer
durables, as well as for colour anodised goods.

The process utilises a mixture of Phosphoric/Sulphuric and Nitric Acids plus other additives operating at 98 degrees Celsius and therefore is operated in an enclosed extraction canopy to ensure no escape of fumes into the work place. Matched to the canopy is an extraction system with duplex fume scrubbing towers and duty and standby fans designed and tested in operation to fully meet UK environmental discharge to atmosphere requirements.

pdf icon Print / Download Electro Brightening Plant Datasheet

Additional files

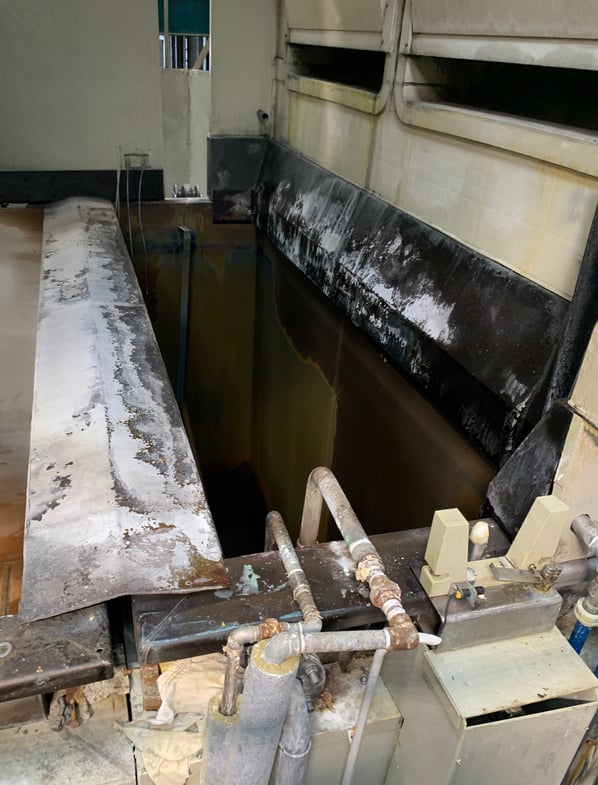

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
