Donaldson Torit (DCE) Unimaster UMA 456 K11 Dust Extractor

Stock No
EC2089
Manufacturer
Donaldson Torit (DCE)
Model
UMA456K11
Year of Manufacture
2009
Serial
00038090
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
5000 / / 9000
Filter Area ft² / m²
444 // 41.2
Other Info
ATEX Rated Explosion Relief Panels
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
850
External Dimensions (WxDxH mm) [?]
1800 x 1900 x 3200
Delivery
Your delivery options

Description

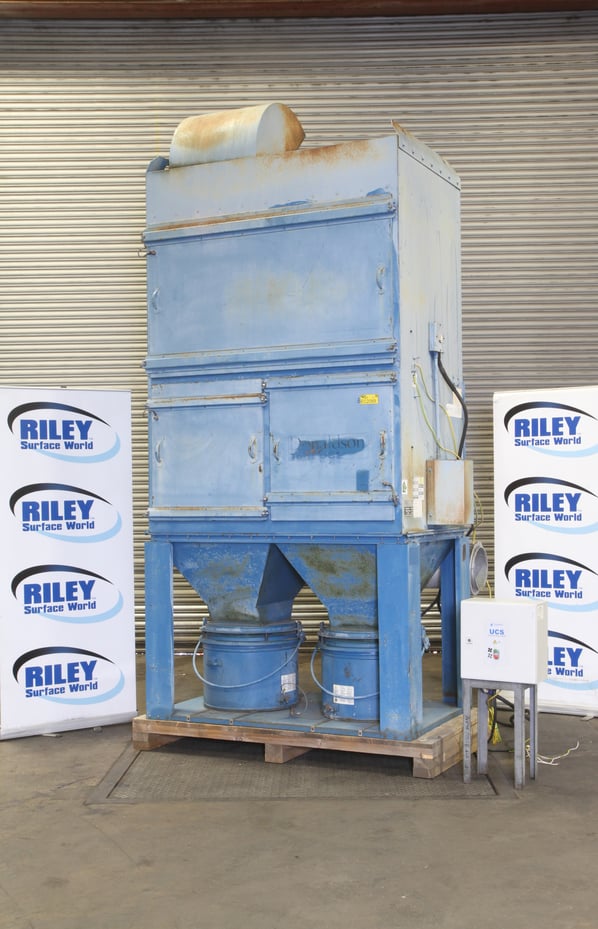

This pre-owned DCE Unimaster 456 K11 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service. The Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy.

Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design Features

  • ATEX explosion relief panels plus front door locking bars.
  • Compact designed - minimises floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation.
  • Motors and 7.5kw // 10 Hp fan are enclosed in collector housing to minimize noise.
  • Easy maintenance.
  • 2 x 3ft³ collection buckets.
  • Quick-release bucket levers allow for easy removal and maintenance of bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Ø250mm inlet ducting.
  • Heavy-duty flexible metal inner bag coils inserted into filter bags keep bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
  • Bag-Release Screws allow for easy removal of bags.
  • Weather cowl allows the unit to be sited outdoors without water ingress.
  • Brand new set of replacement filters included.

pdf icon Print / Download Donaldson Torit (DCE) Unimaster UMA 456 K11 Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
