Machines & equipment for sale

Vixen Surface Treatments Tristar TS504

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DC1516
Manufacturer
Vixen Surface Treatments
Model
Tristar TS504
Year of Manufacture
2014
Serial
2680
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
Ø500 x 2170
Process Stages
Immersion and spray wash + rinse + dry
Other Info
4 stage washer + Ext' Coalescing Filter
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1050
External Dimensions (WxDxH mm) [?]
4000 x 1600 x 1350 (TBC)
Delivery
Your delivery options

Description

The Tristar range of machines has been developed to provide a continuous throughput of parts that need to be degreased, rinsed and dried in large quantities.

 The standard four stage model includes immersion, wash,  heated rinse and hot air dry stages.

The Tristar Conveyor is fitted with a continuous moving (variable speed) stainless steel drum that conveys the components through the different wash, rinse & dry processes and was developed to wash parts that cannot be tumbled due to risk of damage.

The Tristar houses a rotating drum which has an 'Archimedes' continuous screw fitted to the internal wall. This means that as the drum rotates, the turning of the screw moves the parts forward. The parts go through four stages within the drum, Immersion wash, spray wash, spray rinse and hot air dry.

This Tristar 500 machine has been developed to provide a continuous throughput of parts that need to be degreased and dried in large quantities on a continuous basis from processes such as stamping, mouldings and CNC turned parts.

The machine is further enhanced with the fitted option of a vibratory feed chute for the controlled feed of parts, an offload chute for the collection of parts and a coalescing oil skimmer for the maintenance of the wash solution by the removal of oil and grease.

Tristar 500 Features:

  • Electricity Supply - 40-60 amps: 3 phase N+E
  • Fluid volume wash: 280 litres
  • Fluid volume rinse: 225 litres
  • Drum diameter: 500mm
  • Standard perforation sizes: 3-15mm
  • Water heater wash: 12kw
  • Water heater rinse: 6kw
  • Dry heating: 3 x 1.3kw
  • Drum speed: 0-10 RPM
  • Filtration Return To Tank: twin 800 micron
  • Pump pressure: 3 bar
  • Volume litres/minutes: 130 litres
  • Independent oil coalescing oil filter
  • Vibratory feed chute
  • Discharge chute

The Tristar Conveyor is fitted with a continuous moving (variable speed) stainless steel track that conveys the components through the different wash, rinse & dry processes, developed to wash parts that cannot be tumbled due to risk of damage.

The Tristar houses a rotating drum which has an 'Archimedes' continuous screw fitted to the internal wall. This means that as the drum rotates, the turning of the screw moves the parts forward. The parts go through three stages within the drum, immersion wash, spray wash and a final hot air dry. This Tristar 500 machine has been developed to provide a continuous throughput of parts that need to be degreased and dried in large quantities such as those produced. Stainless steel drum 500mm diameter fitted with drive speed control. Electrically heated, adjustable spray bar pressure.

pdf icon Print / Download Vixen Surface Treatments Tristar TS504 Datasheet

Additional files

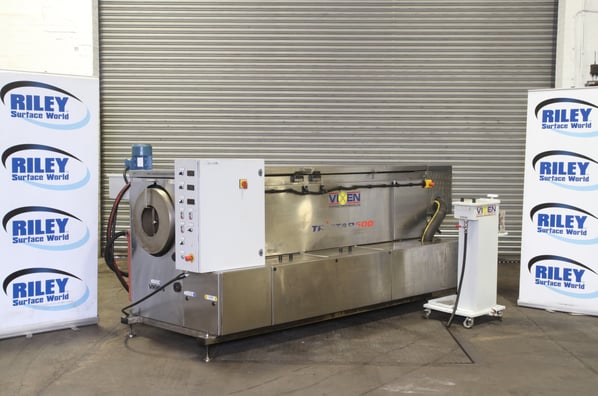

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
