Machines & equipment for sale

Ambilogos Equipmentos Industriais Large 3m x 3m Wide Process / Treatment Tanks

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance

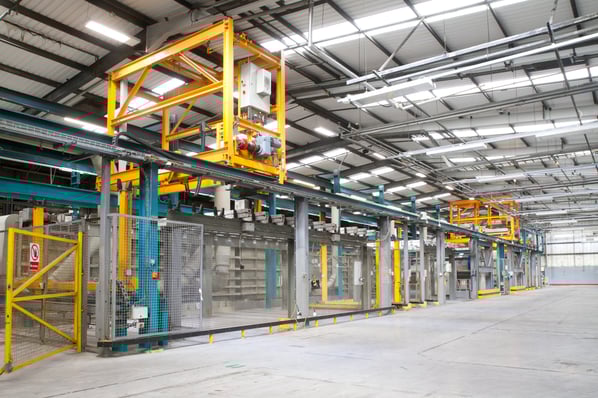

Hydro Aluminum Anodising & Brightening Finishing Plant
Add to Quote Book Appointment
Stock No
HYD950
Manufacturer
Ambilogos Equipmentos Industriais
Model
Large 3 x 3m Stainless Steel & Polypropylene Tanks
Year of Manufacture
2013
Serial
2307
Work Envelope (WxDxH mm) [?]
Varied (see images)
Process Stages
Up to 40
Other Info
High Specification Transporters
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
See Layout drawing
Delivery
Your delivery options

Description

High quality Large 3m x 3m Stainless Steel and Polypropylene Process & Treatment Tanks

Quantity of Tanks: 40 (some single /some double)
Suitable to build complete line, upgrade existing plant or to purchase individually.
Associated lip extraction ducting may also be available

Current Configuration:-

  • Tank 1: Brightening Station (Stainless Steel)
  • Tank 2: Warm Brightener Rinse (Stainless Steel)
  • Tank 3: Brightener Rinse (Polypropylene)
  • Tank 4: Desmutt (Stainless Steel)
  • Tank 5: Dirty Desmutt Rinse (Polypropylene)
  • Tank 6: Clean Desmutt Rinse (Polypropylene)
  • Tank 7: Clean Alkaline Rinse  (Polypropylene)
  • Tank 8: Dirty Alkaline Rinse  (Polypropylene)
  • Tank 9: Etch A (Stainless Steel)
  • Tank 10: Etch B (Stainless Steel)
  • Tank 11: Cleaner (Polypropylene)
  • Tank 12: Loading
  • Tank 13: Anodising - 1 (Polypropylene)
  • Tank 14: First Rinse Anodising (Polypropylene)
  • Tank 15: Second Rinse Anodising (Polypropylene)
  • Tank 16: Anodising - 2 (Polypropylene)
  • Tank 17: First Rinse Anodising (Polypropylene)
  • Tank 18: Second Rinse Anodising (Polypropylene)
  • Tank 19: Third Rinse Anodising (Polypropylene)
  • Tank 20: Spray Die Rinse (Polypropylene/Lid)
  • Tank 21: Demin Rinse (Polypropylene)
  • Tank 21(a): Cold Seal (Stainless Steel)
  • Tank 22: Electro Colouring Rinse  (Polypropylene)
  • Tank 23:Electro Colouring (Polypropylene)
  • Tank 24: Clean Rinse Electro Colouring (Polypropylene)
  • Tank 25: Cold Seal (Polypropylene/Lid)
  • Tank 26: Cold Seal - First Rinse (Polypropylene)
  • Tank 27: Cold Seal - Second Rinse (Polypropylene)

There are a number of other tanks available for rinsing etc.



pdf icon Print / Download Ambilogos Equipmentos Industriais Large 3m x 3m Wide Process / Treatment Tanks Datasheet

Additional files

Tank Layout

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
