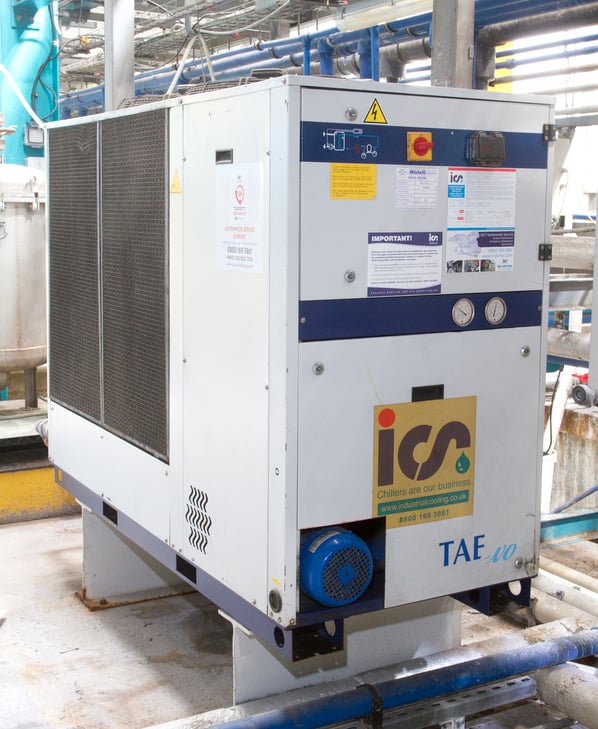

Industrial Cooling Systems (ICS) TAE Evo 121 Chiller

Stock No
HYD200
Manufacturer
Industrial Cooling Systems (ICS)
Model
TAE Evo 121
Year of Manufacture
2007
Serial
2200100306
Condition
From a working environment, Good Condition, Current Model
Ave. cooling capacity
52.2kW at 15ºc CWLT
Ave. Water Flow Rate
9.0/1.8 m3/h with 2.6/1.6 bar
Other Info
Modern thermal fluid chiller
Location
Gloucester, UK
Weight (kgs)
405
External Dimensions (WxDxH mm) [?]
1,860 x 760 x 2100
Delivery
Your delivery options

Description

A popular pre-owned self contained air cooled package chiller having a cooling capacity 52.2kW at 15ºc CWLT (chilled water leaving temperature) in an ambient of 32ºc.

Suitable for a wide range of solution and water cooling applications including cooling of anodizing plating applications, injection moulding, food, diary, laser cutting and air conditioning to name but a few.

This fully packaged chiller contains a single Maneurop fully hermetic compressor.

With quick-release water and power connections, this chiller has been designed for a fast installation and start-up.

The chiller can be supplied with an atmospheric or pressured set-up and can manage a wide range of temperature requirements (+20 to –0°C)

The 52.2kW chiller contains a 255 litre buffer tank and a circulation pump, which draws from the tank to supply the incumbent cooling system.

The chiller cycles off when the set outlet temperature in the evaporator has been achieved.

Technical Specifications

  • Dimensions - 1860mm x 760mm x 2100mm
  • Weight - 405kg
  • Water Connections - 1 1/2” Female BSP
  • Max/Min Water Flow - 9.0/1.8m3/h with 2.6/1.6 bar
  • Running Current - 32 Amps
  • Power Supply - 400(±10%)/3/50
  • Max Power Absorbed - 10.3kW
  • Power Sound Level - 54.1dB(A) @ 10m
  • Nominal Cooling Duty - 52.2kW @ 15°C (38.5 @ 15°C)
  • Cooling Efficiency - 52.2kW @ 15°c cwlt in an ambient air temperature of 32°c.
  • Cooling Fans - Twin axial condenser
  • Refrigerant - R407
  • Max Refrigeration Pressure - 26bar
  • Ambient Water Temp - 5/43°C

pdf icon Print / Download Industrial Cooling Systems (ICS) TAE Evo 121 Chiller Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
