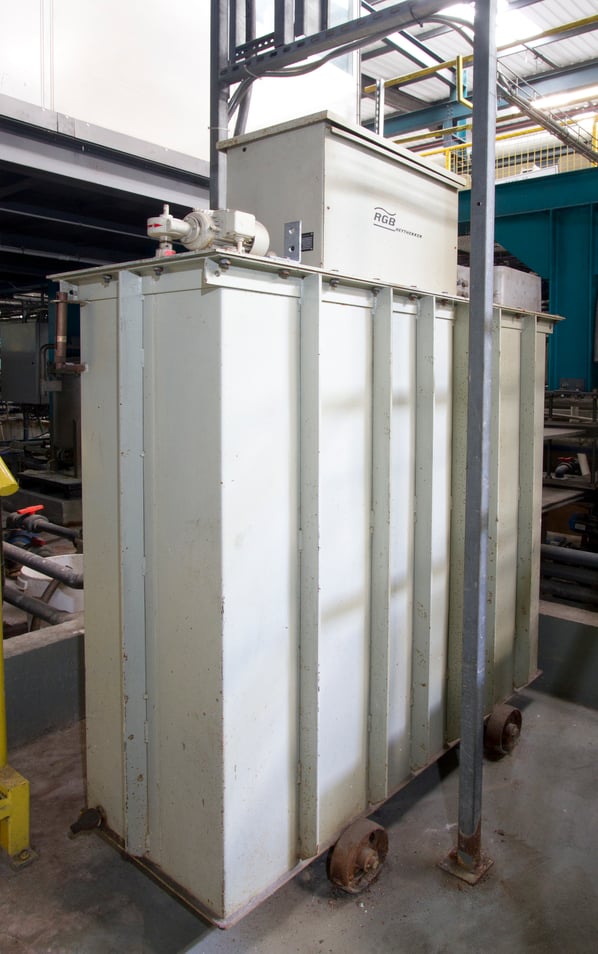

RGB 2000Amp/20V Self Contained Transformer Rectifier

Stock No

HYD500

Manufacturer

RGB

Model

DC Regulating Transformer

Year of Manufacture

1994

Serial

25480

Voltage

0 to 20

Amps

2000

Other Info

Self contained D/C regulator

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

780

Delivery

Your delivery options

Description

RGB 2000Amp, 0 to 20 Volt, oil cooled DC regulating transformer, predominantly used in the electroplating, electroforming, electro paint, electropolishing and motor control industries, to provide a stable DC current supply.

These units have inbuilt regulating transformers to the incoming supply to give variable voltage output.

Technical Data:

• Mains: 3x400V / 50Hz (worldwide mains conditions possible)
• Regulating: digital raise/lower signal  (step less electronic 0...100%)
• Signals: current, voltage, status.
• Control: interface for external control
• Ripple: <5% over the whole range
• Operation mode: 100% duty cycle
• Temperature: +35°C (higher temperature conditions possible)
• Cooling: oil cooled
• Degree of protection: control cabinet IP20 - tank IP54

Oil Cooling Provides:

• Efficient cooling of all power parts
• Protection from corrosion
• Suitable for outside location
• Silent operation
• Low maintenance and high reliability

Print / Download RGB 2000Amp/20V Self Contained Transformer Rectifier Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
