Elca Thyristor Pulse Rectifier

Stock No
HYD550
Manufacturer
Elca
Model
Pulse Rectifier P (digital type). Rectifier 'B'
Year of Manufacture
2013
Serial
1303R11
Condition
From a working environment, Seen working by RSW, Excellent Condition
Voltage
Input 3 x 415V : Output 22V DC
Amps
In' 517 A : Out' Max Average 13,500 DC
Other Info
IP20 : 6 phase output pulses
Location
Gloucester, UK
Weight (kgs)
2300
External Dimensions (WxDxH mm) [?]
1100 x 1700 x 2000
Delivery
Your delivery options

Description

Digital Type Pulse Rectifier, all the main functions such as; Programming, SCR firing and output regulation, parameter and alarm indication, and interfacing with external PLC, are all digitally controlled.

User Interface features (HMI)

  • Graphical Display
  • 5 Multi-functional control keys
  • Volt meter and amp meter
  • Stop / Start
  • Joystick functions with 4 direction control and ESC key
  • Numeric keyboard.

Technical Features

  • Type : P (Digital type)
  • Adjustment : Electronic by means of SCR on the primary of transformer
  • Rectifying circuit : Six-phase with interphase transformer (6 output pulses)
  • Control : Electronic control, 0÷100% by means of thyristors. Constant voltage or constant current control
  • Max current protections : Automatic general switch  : Max current limit electronic device
  • Max temperature protections : By means of thermostats in the transformer windings and on the heat sinks of the semiconductors.
  • Power transformer :  According to CEI EN 61558 standard
  • Cooling : By means of air circulation with electro-ventilators
  • Protection degree : IP20
  • Dimensions: 1100mm x 1700mm x 2000(h) mm
  • Weight : 2300 Kg
  • Noise : < 80 db, measured at 1 mt. distance
  • Short-circuit current : ≤ 10KA

Input

  • Supply 415Vac, three-phase - 50Hz.
  • Supply line input current: IL = 540A

Output

  • Rated voltage: 22Vdc
  • Base current: 10000Adc
  • Pulse current: 15000Adc
  • Max average continuous value: 13500Adc

Full manual attached

pdf icon Print / Download Elca Thyristor Pulse Rectifier Datasheet

Additional files

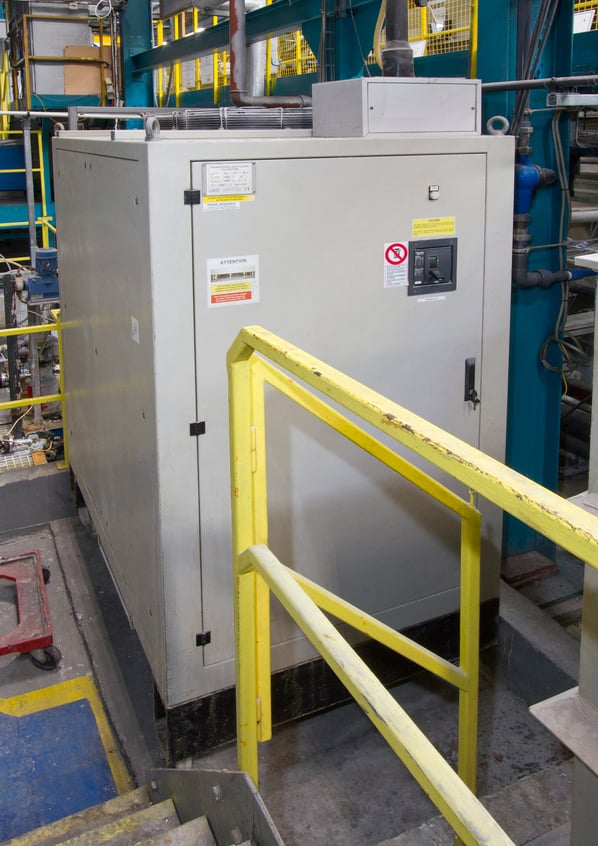

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
