Machines & equipment for sale

Industrial Cooling Systems (ICS) Chiller and Cooling Unit

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
07 December 2023 15:00 GMT while stocks last
Decommissioning,
Moving & Loading Contribution [?]
£ 2,600 (+ VAT) will be added to your invoice
Part of a Direct Site Clearance
Hydro Aluminum Anodising & Brightening Finishing Plant
Condition
From a working environment, Seen working by RSW, Good Condition
Location
Gloucester, UK
Buy Now Add to Quote Book Appointment
Stock No
HYD700
Manufacturer
Industrial Cooling Systems (ICS)
Model
TAE 602
Year of Manufacture
2004
Serial
2200038380
Condition
From a working environment, Seen working by RSW, Good Condition
Ave. cooling capacity
175 KW @ 15°C CWLT
Ave. Water Flow Rate
30 to 48 m3h
Other Info
Extremely precise temperature control
Location
Gloucester, UK
Weight (kgs)
1500
External Dimensions (WxDxH mm) [?]
Ext – 1260 x 3600 x 2250
Delivery
Your delivery options

Description

ICS Chiller Cooling Cell with Water Storage Tank and Heat Exchangers

** Priced to sell as a cell - Individual suggested prices below **

ICS TAE 602 Chiller

ICS Cool Energy’s 175kW TAE 602 air-cooled chiller has an integral thermal buffer tank in order to give a controlled band of temperature control to your process or HVAC system. This chiller offers a wide temperature range of -10°C to 15°C water leaving.

Rhoss Clima Evolution Chiller

  • Model – A341270794502 TCAEBY 4320 EVO-BCI-F110-0P1-12A
  • Serial – RHC2YNOTCL040004
  • YoM – 2013
  • Power – 400v / 50Hz / 3ph
  • Absorbed Power – 129.6kW
  • Max current – 255A
  • Starting current – 509A
  • Refrigerant type – R410A
  • Charge – 20.8kg
  • Max gas Pressure – 4020KpA (HPS)
  • External size – 5050mm (5550mm incl. pipework) x 1200mm x 2200mm
  • Max water pressure – 600kPa (LPS)

Water Tank – Purewater Storage LTD

  • External size – 2700mm x 1500mm x 1500mm
  • Product reference – PW3636
  • Job reference – J7659
  • Capacity – 3636 litres

2 off Alfa Laval Heat Exchangers

  • Model – M10-MFC
  • Serial No. – 30108-2680 (right heat exchanger) // 30108-26806 (left heat exchanger)
  • Yom – 2013
  • Volume – 37,6L
  • Max allowable pressure – 16.0BAR
  • Max allowable temperature – 30°C
  • Test pressure – 22.9BAR
  • Test pressure date – 18/01/2013
  • Dims per ‘skid’ (each exchanger sat on its own skid, comprising of a heat exchanger and associated pipework/sensors/valves): 2300mm x 1100mm x 1850mm per unit

Individual suggested prices (subject to seller discretion)

ICS TAE 602 Chiller - £10,500.00
Rhoss Clima Evolution Chiller - £7,500.00
Water Tank – Purewater Storage LTD - £900.00
2 off Alfa Laval Heat Exchangers - £6,000.00

pdf icon Print / Download Industrial Cooling Systems (ICS) Chiller and Cooling Unit Datasheet

Additional files

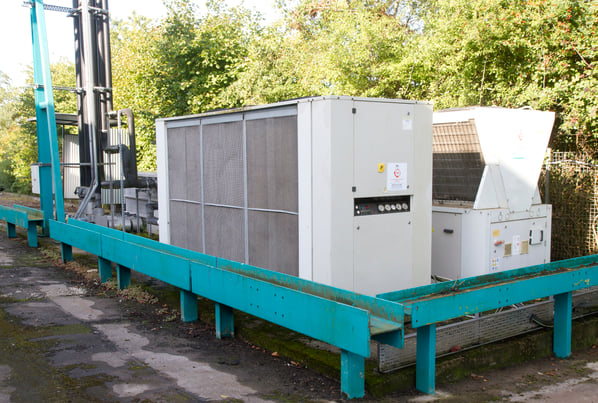

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
