Machines & equipment for sale

Certuss Steam Generator

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
07 December 2023 15:00 GMT while stocks last
Part of a Direct Site Clearance
Hydro Aluminum Anodising & Brightening Finishing Plant
Condition
Seen working by RSW, Good Condition
Buy Now Add to Quote Book Appointment
Stock No
HYD300
Manufacturer
Certuss
Model
Universal 850 SC
Year of Manufacture
2008
Serial
12632
Condition
Seen working by RSW, Good Condition
Work Envelope (WxDxH mm) [?]
Steam output 960kg/h 184°C
Process Stages
2 Stage Gas Burner
Other Info
Very Short Heat Up Time
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2300
External Dimensions (WxDxH mm) [?]
1200 x 1900 x 2400mm
Delivery
Your delivery options

Description

Steam Generator, using the water tube boiler principle, the CERTUSS technology for generating steam offers maximum safety, reliability and instant availability of high-quality steam.

Multiple units can be added to meet higher or flexible demand requirements.

Principle of operation

  • By using the water tube boiler principle, the CERTUSS technology for generating steam offers maximum safety, reliability and instant availability of high-quality steam.
  • Multiple configurations and settings of steam pressure are available through the controls.
  • The pre-heated feed water is delivered to the Generator at approx. 90 to 95°C. The heat frees the oxygen from water and reduces the risk of oxygen corrosion.
  • The heat exchanger coil is supplied with water through the feed water inlet. The change of phase from water to steam begins.
  • The modulating, integral burner with the fastest response time, provides precise, controlled steam pressure.
  • When the steam has been produced, it leaves the generator through the steam outlet and is then ready for use.
  • The flue gas outlet connects to the chimney.
  • The safety relief valve opens automatically to discharge excess steam when the pressure is too high.

 Technical Specification

  • Manufactured 2008
  • Electrical Power 0.15kVA
  • 3 phase 50 Hz, 400Volts
  • 16Amp
  • Control voltage 230V AC

On Site Data Collection

Model - CERTUS UNIVERSAL 850SC
Serial No. – 12632
Ext – 1200mm x 1900mm x 2400mm
Pipework/motors – pallet space
Model - CERTOMAT
Art. – Nr 4700505

Full operation manual and electrical drawings are available.

pdf icon Print / Download Certuss Steam Generator Datasheet

Additional files

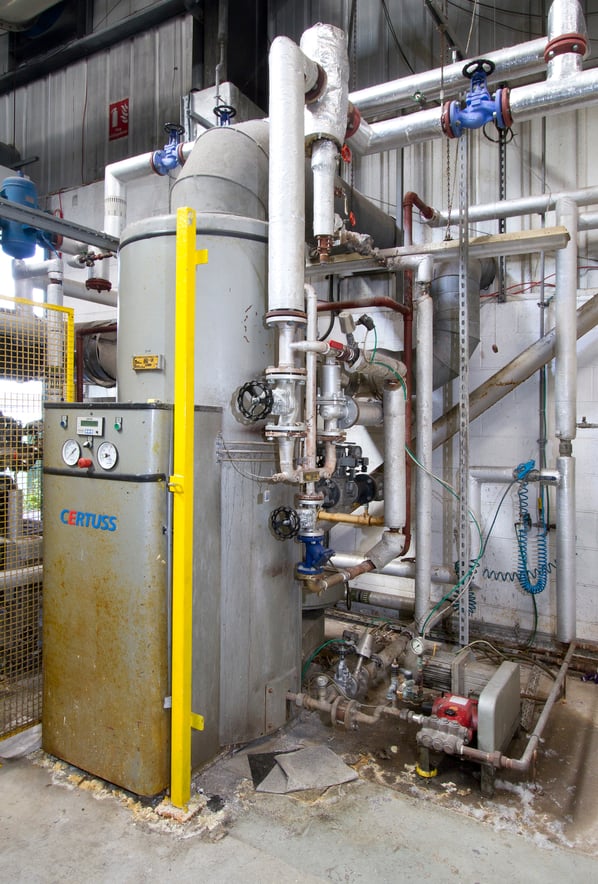

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
