Certuss Steam Generator

Stock No

HYD400

Manufacturer

Certuss

Model

Universal 1500 TC

Year of Manufacture

2019

Serial

15346

Condition

Excellent Condition

Work Envelope (WxDxH mm) [?]

Steam Capacity 1500kg/h

Process Stages

2 Stage Burner

Other Info

Very Short Heat Up (5 Min's full Steam)

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

2300

External Dimensions (WxDxH mm) [?]

1380 x 2310 x 2675 (approx.)

Delivery

Your delivery options

Description

Steam Generator, using the water tube boiler principle, the CERTUSS technology for generating steam offers maximum safety, reliability and instant availability of high quality steam.

Gas / Oil Fired

The CERTUSS Universal TC Model Generator offers a 2 stage burner operation, with full modulation feature (50 % to 100 %) in second-stage burner position. With the CERTUSS Universal TC Model generator steam is produced in under 5 minutes and it can cope with both a constant or fluctuating steam demand. Lightweight in construction, compact in size and suitable for all steam industry sectors, the CERTUSS Universal TC Model generator is suitable for positioning on a mezzanine floor, therefore offering available free floor space below for other usages.

Manufactured with a touch screen control facility, data from the CERTUSS Universal TC Model generator can be easily forwarded to site BMS via a compatible Profibus / CAN bus, Modbus, BACnet or similar system. Offering a standard Thermal efficiency of > 93%, the CERTUSS Universal TC Model generator is a world leader in comparison to other industrial steam boilers or industrial steam generators available on the market.

Full automatic stop/start/blow-down facility is available with all CERTUSS Universal TC Model generators. Multiple units can be added to meet higher or flexible demand requirements. The CERTUSS Universal TC Model generator can be installed within production facilities. All CERTUSS Steam Generators are manufactured to current PED 2014/68/EU standards.

Principle of Operation

• By using the water tube boiler principle, the CERTUSS technology for generating steam offers maximum safety, reliability and instant availability of high quality steam.
• The touch screen control panel simplifies the operation and control of the generator. All configurations and settings of steam pressure are made here.
• The pre-heated feed water is delivered to the Generator at approx. 85 to 95°C. The heat frees the oxygen from water and reduces the risk of oxygen corrosion.
• The heat exchanger coil is supplied with water through the feed water inlet. The change of phase from water to steam begins.
• The modulating, integral burner with the fastest response time, provides precise steam pressure control down to 0.01 BAR G.
• Insulation material is made obsolete by guiding the combustion air from the top of the Generator through an outer shell, and from there into an inner, secondary shell.
• The combustion air intake & fan draw in warm air through the triplex system to preheat the combustion air and keep the outer jacket cool.
• When the steam has been produced, it leaves the generator through the steam outlet and is then ready for use.
• The flue gas outlet connects to the chimney with or without an Economizer.
• Sediment is flushed out through the coil blow-down valve.
• The safety relief valve opens automatically to discharge excess steam when the pressure is too high.

 Advantages of Touch Screen Controls

• The CERTUSS Steam Generator can be operated by any competently trained person
• Signaling of data for remote monitoring to local your BMS facility
• Available with Ethernet, CANbus, Profibus, GSM and DEL
• Alternatively external pulse via Volt Free contact facility
• Under HSE guidelines, CERTUSS Generators do not require BGO1 (formerly PM5) remote unmanned monitoring facility
• The CERTUSS Generator is also exempt from HSE recommendations for Boiler Operative Training (BOAS)

Technical Specification

• Manufactured 2019
• Electrical Power 17.86kVA
• 3 phase 50 Hz, 415Volts
• 32Amp
• Control voltage 230V AC / 24V DC



Print / Download Certuss Steam Generator Datasheet

Additional files

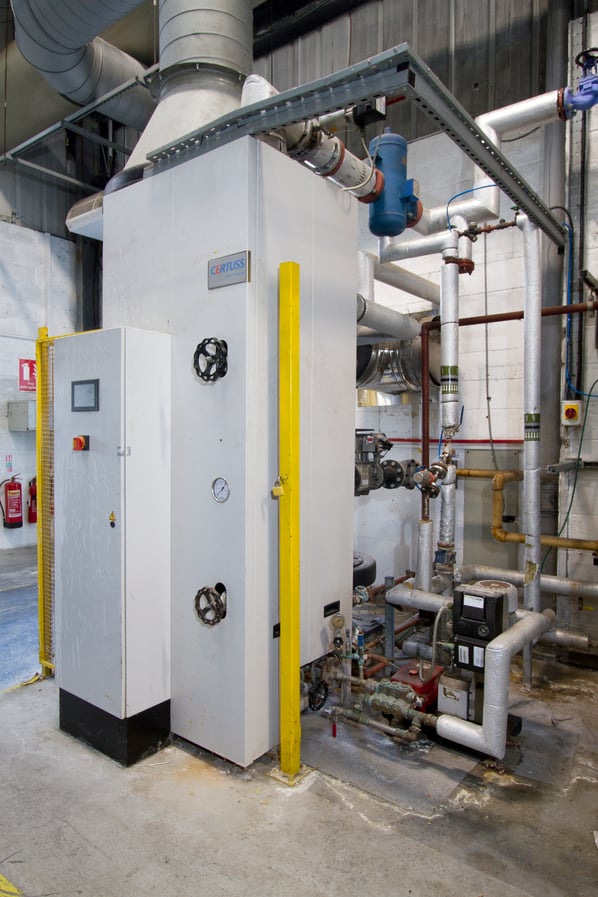

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
