Surtech Long Belt Pressure Pad LS90-1500 Manual Polishing / Linishing Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
PC1185
Manufacturer
Surtech
Model
LS90 - 1500
Year of Manufacture
2009
Serial
396
Condition
From a working environment, Excellent Condition, Current Model
R.P.M.
950 / 1440
Hp/Kw
3.2kW / 4.5kW
Other Info
Work envelope: 1380 x 800 x 500
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
500
External Dimensions (WxDxH mm) [?]
2430 x 1360 x 1580
Delivery
Your delivery options

Description

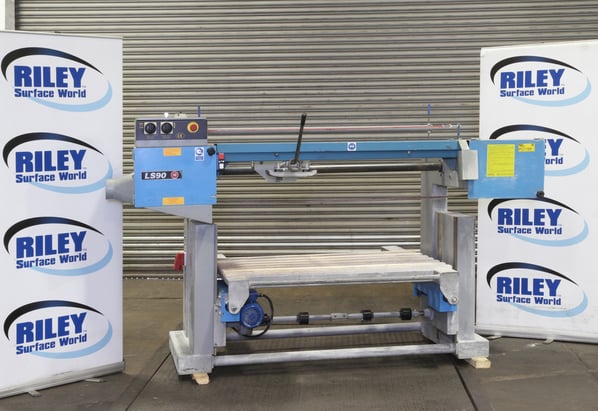

Surtech Long Belt Grinder Model LS90-1500

Designed for grinding, deburring, graining, finishing and polishing components such as sheets and plates, hollow sections, flat bars, and profiles etc.

The horizontally arranged abrasive belt runs over the length of the table. The table moves up and down to adjust the height/thickness of the workpiece and the table can also be moved back and forth to offer full bed coverage.

A contact unit is manually moved over the abrasive belt, contact pressure is applied manually via a counterbalanced lever connected to the contact unit. The contact unit can be fitted with a variety of different pads or contact wheels to suit the application in hand.

Benefits of the LS90

  • Simple to use even by unskilled operators.
  • Finishing tools like abrasive belts, buffs and brushes are
  • guided and therefore rely less on the skill of the operator.
  • Operator fatigue is reduced considerably.
  • Fast, because the machine covers a larger area than
  • traditional portable tools.
  • Versatile, because a vast range of consumables can be
  • used: abrasive belts, abrasive impregnated nylon belts,
  • abrasive wheels and brushes, cotton and sisal buffs.
  • (Some of these materials require optional extras).

Principle Machine Operation

  • Abrasive belt grinding
  • Contact unit moves up and down, and left and right.
  • Table moves up and down, and forwards and backwards.

Applications

  • Grinding and finishing of sheets, plates, extrusions, and other flat and curved parts
  • Deburring of laser, plasma, and flame cut blanks
  • Deburring of guillotined, sawn, nibbled, and punched parts
  • Finishing of fabrications
  • Grinding and blending of welds
  • Grinding of castings
  • polishing of stainless steel
  • Sanding of wood, paint, plastics, etc
  • Blending of profiled parts

Technical Details

  • Table lengths 1380mm, Table width 800mm. NOTE, Table and width does not mean max working dimensions, these also depend upon on the contact roll or pad assembly used.
  • Vertical table travel 500mm
  • Abrasive belt drive motor 3.2 and 4.5kW dual speed motor, 950 and 1440rev/min.
  • Abrasive belt dimensions 150mm wide
  • Pulley diameter 300mm
  • Dust extraction flange for connection to dust extraction unit.
  • Low volt control circuit.
  • Overload control.
  • Approx. weight 500kg.
  • Overall dimensions 2700mm x 2250mm (with table movement) x 1600mm
  • Pad size approx. 300mm x 125mm
  • An added feature to this machine is the powered table elevation which raises and lowers the work table through a geared motor.

pdf icon Print / Download Surtech Long Belt Pressure Pad LS90-1500 Manual Polishing / Linishing Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
