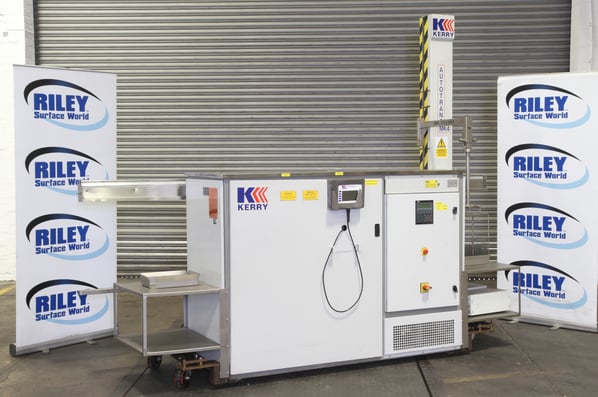

Kerry ( Guyson International ) Microsolve M350C Co-Solvent Ultrasonic Cleaner with Autotrans MK4 Basket Handling

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
DC1510
Manufacturer
Kerry ( Guyson International )
Model
M350 C Autotrans MK4
Year of Manufacture
2002
Serial
61422-1-2-02
Condition
From a working environment, Excellent Condition, Seen powered at RSW
Process Stages
Ultrasonic Immersion, Vapour Rinse & Dry
Location
Our Central Warehouse, Aldridge, UK
Delivery
Your delivery options

Description

This pre-owned Microsolve Co-Solvent system provides two ultrasonic cleaning stages, followed by vapour rinsing and freeboard dry.

In the first cleaning stage a mixture of HFE and a hydrocarbon solvating agent removes gross contamination from the components.

Solvent retention features unique to the Microsolve range–triple coil reflux cooling, vapour break, 150% freeboard, ensure that systems are safe and comply fully with environmental and safety legislation.

These design features also mean that Microsolve systems are able to operate with low, predictable solvent usage and customers enjoy low, predictable running costs.

Large quantities of dirt and oils can be taken up by the solvating agent, making the process particularly suitable for heavy duty ultrasonic cleaning applications.

The Co-solvent process handles with ease applications such as removal of polishing compounds, maintenance cleaning of power generation system components, and flux removal from PCBs, including no-clean and lead-free solder flux residues.

Typical applications include bearings, gyro components and precision medical components; maintenance cleaning of pneumatic and hydraulic components; and, in electronics, flux removal from PCBs or from soldering jigs and fixtures.

Autotrans MK4 30kg lifting capacity.

Automating the cleaning process reduces running costs on multi-stage systems by assuring consistent, repeatable quality, reducing reject rates, and increasing throughput.
With Microsolve systems further cost reductions result from controlling the speed of basket entry and withdrawal from the vapour zone, thus reducing solvent drag-out and losses to the atmosphere caused by disturbance of the vapour blanket.

Programming Features of the Autotrans MK4

  • Digital control system reduces wire complexity, ensures signal integrity and allows control functions to be modularised.
  • Touch sensitive programming key board with LCD sixteen line programming function and prompt display.
  • Program storage and security is provided by a smartcard
  • Password protection to prevent unauthorised program interference.
  • Standard specification allows sixteen programmable 1/0 functions and sixteen flags. The flags can be used for basket position recognition and process timing.
  • Full edit facilities including position, dwell times and function controls.
  • Infinitely variable programmable motor speed control
  • True servo motors with built-in positional encoder ensures positional accuracy to +/- 1mm.
  • Over travel protection and automatic datuming upon machine installation. RS 232 Interface
  • Intelligent basket processing allows simultaneous management of varying load types and application of appropriate processing parameters (immersion times, sonics program etc).

Key Benefits:

  • Ease of use
  • Faster processing
  • Higher throughput
  • Increased flexibility of load content
  • Reduced running costs
  • Consistent operation
  • Retrofit to existing systems

The Co-Solvent Process

Guyson Co-Solvent systems provide two ultrasonic cleaning stages, both with filtration, followed by vapour rinsing and freeboard dry.

In the first cleaning tank a mixture of HFE (hydrofluoroether) and a hydrocarbon solvating agent removes gross contamination from the components. Large quantities of dirt and oils can be taken up by the solvating agent, and
this makes the process particularly suitable for heavy duty cleaning.

In Stage 2 pure HFE distillate removes from the components residues carried over from the primary cleaning tank.

Both cleaning tanks include base-mounted ultrasonic transducers with a generator, solution heating and a pumping and filtration system.

Cleaning is followed by a rinse in the vapour zone above the tanks and then a dwell in the freeboard zone to dry the components.

General Specifications:

  • Front to back inc. Autotrans 1200
  • Width inc. Autotrans  3320
  • Height inc. Autotrans 2580
  • Tank (internal)  350 Long
  • Tank (internal)  200 Wide
  • Tank (internal)  330 deep
  • Basket v300 Long
  • Basket  200 Wide
  • Basket   200 Deep
  • Vapour depth 430
  • Freeboard height 375
  • Autotrans SWL - 30kg MAX



pdf icon Print / Download Kerry ( Guyson International ) Microsolve M350C Co-Solvent Ultrasonic Cleaner with Autotrans MK4 Basket Handling Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
