Donaldson Torit (DCE) UMA756 K18 Dust Extractor

Stock No
EC2085
Manufacturer
Donaldson Torit (DCE)
Model
UMA 756 K18
Year of Manufacture
2018
Serial
15520840
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
4500/5000cfm // (7500/8500m3hr)
Filter Area ft² / m²
750 ft2 // 70M2
Other Info
15kw Fan
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1109
External Dimensions (WxDxH mm) [?]
2230 x 1230 x 3570
Delivery
Your delivery options

Description

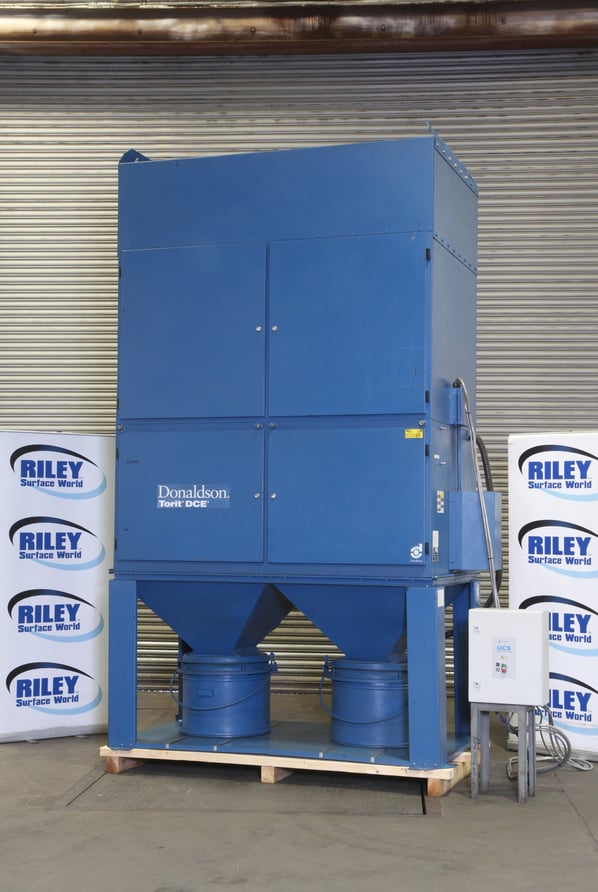

This used Unimaster® UMA 756 K18 dust collector from Donaldson® Torit® is designed to maximize dust collection and the life of collector components for years of extended service.

In production now for over 40 years with hundreds of thousands in use worldwide, the Unimaster collector’s compact design and quiet operation is an industry success.

The Unimaster range is a simple but effective design that ensures that it provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with a fan and fan motor, automatic shaker qith motor, silencer hood, and system controller making installation quick and easy.

Since the automatic shaker cleans the filter bags, there is no need for expensive compressed air.

Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

The Unimaster Offers:

  • Compact design Minimizes floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation Motors at 78dB(a) and 15kW fan is enclosed in collector housing to minimize noise.
  • Easy maintenance.
  • 4 position inlet manifold.
  • Twin waste collection buckets.
  • Secondary filtration unit for use with dangerous dust such as heavy metals, zinc, stainless etc.
  • Fitted ATEX-rated explosion relief panel dusts from potentially explosive sources such as flour, aluminium and other combustibles can be handled in this stand alone unit. The directional upturned blast duct directs the busting film upwards and away from any personnel making it safe to site in busy areas.

Unimaster Performance

  • Inlet deflector to knock down larger particles into the hopper reducing bag abrasion and increasing filter bag life.
  • Heavy-duty flexible metal coils inserted into filter bags keep bags open to maximize airflow and assist in knocking dust off during the cleaning cycle.
  • Quick-release lever allows for easy removal and maintenance of bin.
  • High-efficiency secondary filters allow the cleaned air to be returned to the work area.

Specification:

  • 15kw/20hp fan-set
  • 750sq.ft. (75m) fabric filter area
  • Approx. duty 4500/5000cfm. (7500/8500m³hr)
  • ATEX-rated explosion relief panel with directional upturned blast duct
  • Exit silencer
  • Double 3cu.ft collection buckets
  • Twin inlet each being 345mm x 215mm (14" x 9")
  • Fulimatic auto fan shaker control
  • Overall dimensions - 2200mm x 2500mm x 3500mm

pdf icon Print / Download Donaldson Torit (DCE) UMA756 K18 Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
