JKF Industries JK 55 K Blade Impeller Centrifugal Fan

Stock No

RIC300

Manufacturer

JKF Industries

Model

JK 55 K

Year of Manufacture

2000

Serial

3264007

Approx Duty CFM / M³/Hr

8K-29K M³/Hr at high press; 160-600mmWG

Filter Area ft² / m²

Fume Extraction

Other Info

Inlet dia 550

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

740

External Dimensions (WxDxH mm) [?]

1300 x 1900 x 1720

Delivery

Your delivery options

Description

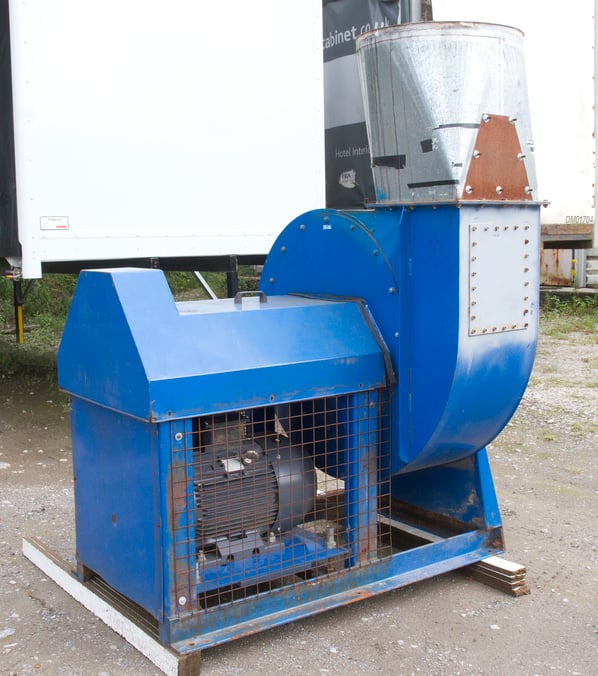

A JKF 55 K  L90 orientation centrifugal fan and motor mounted in a robust framework ready to connect to inlet and outlet ducting via suitable flange connections. Suitable for a wide range of applications.

A radial paddle fan suitable for applications whereby considerable dust or product is suspended in the air stream, designed to take directly such airflow conditions.

• 8,000 - 29,000 M³/Hr
• Pressure 160 - 600mmWG
• 30kw
• 1650 r.p.m
• 400/690 Volt
• Max. 2050 r/m
• Max. Temp 70°c

External dimensions =1300 x 1750 x 1430 (to top of Fan) 2040 (Inc. Ducting) mm ( w x d x h)
Inlet diameter = 600mm
Outlet dimensions = 6000mm





Print / Download JKF Industries JK 55 K Blade Impeller Centrifugal Fan Datasheet

Additional files

Fan Selection Technical Advice

Fan Curve Document

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
