Disa (Airmaster ) NFK 2000 6+ 1 HJLR Reverse Air Dust Extraction Filter

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Part of a Direct Site Clearance
Large Disa Dust Collector
Condition
Seen working by RSW
Location
Glossop, Derbyshire, UK
Buy Now Add to Quote Book Appointment
Stock No
RIC600
Manufacturer
Disa (Airmaster )
Model
NFK 2000 6+ 1 HJLR
Year of Manufacture
1997
Serial
415384
Condition
Seen working by RSW
Approx Duty CFM / M³/Hr
17,000 // 28,750
Filter Area ft² / m²
2,400 // 490
Other Info
37kw // 150 Filter Bags
Location
Glossop, Derbyshire, UK
Weight (kgs)
3500
External Dimensions (WxDxH mm) [?]
8800 x 4200 x 5300
Delivery
Your delivery options

Description

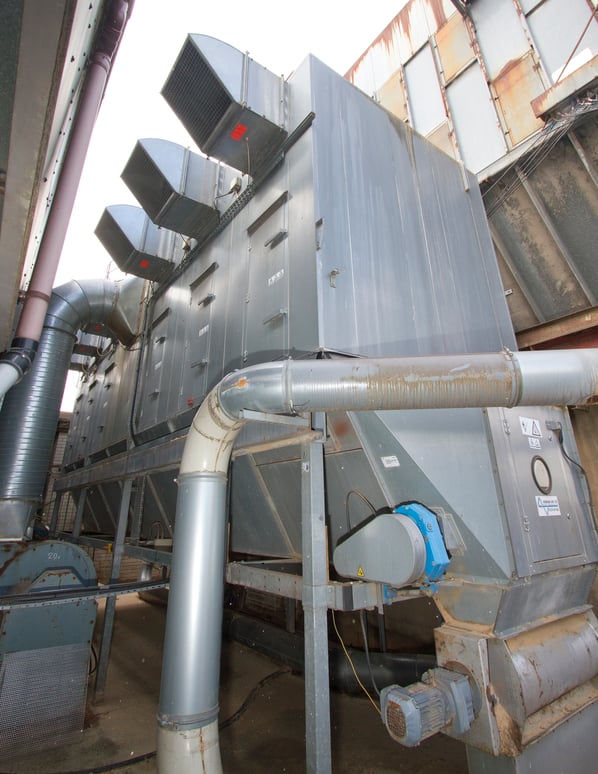

DISA NFK 2000 6+ 1 HJLR Chain Dust Extraction Filter with Reverse Air Filter Cleaning and 37kw Fan

** Includes a substantial amount of  additional filters and spares **

Features

  • 17,000 CFM @ 6:1 Air-to-Cloth Ratio
  • 2,400 Sq. Ft. of Media from (150) Filter Bags
  • (3) HJ Filter Sections + (1) Blank Inlet Plenum
  • Reverse Air Filter Cleaning
  • 37kw Fan
  • Filter system with approx. 300 hoses, diameter approx. 200 mm with approx. 2600 mm length
  • Filter area approx. 490 sqm
  • Rotary valve with drive 0.75 KW
  • Diameter of the hopper 200 mm
  • Transport fan 5-7.5 KW with 250 mm direct drive
  • Return air duct 800 x 800 mm 1200 mm long 6 elements
  • Exhaust/recirculating air changeover flap
  • Double deflection of return air with explosion surfaces
  • Control of filter system, rotary valve, return air system
  • Explosion relief doors with easy-to-use handles allow easy access to the filter housing.

Machine description

A chain conveyor belt built into the bottom section ensures that the filtered material is discharged to a central extraction point for onward transport.
The regeneration fan, which conveys the purge air backwards through the filter bags, ensures effective cleaning.
Regeneration can be activated both during operation and in conjunction with breaks in operation.
A fire damper is activated in the event of an abnormal increase in temperature.
The return air ducts are closed and at the same time the system shuts down so that any fire cannot spread in the factory. The summer-winter changeover flap regulates the amount of filtered warm air that is returned to the production rooms.
A partially installed drive station in the full width of the outlet prevents the accumulation of chips, etc.
The larger bottom section ensures a smooth flow of air in the filter, which limits wear and tear on the hoses. NFRP is provided with a fully galvanized and adjustable framework.
At the heart of the filter are the patented SUPERBAG filter bags Extra large return air capture space, ensuring low energy consumption.

Manufacturer: DISA
Model: NFK 2000
Weight 3500 KG
Year of construction: 1997
Condition: Used
Application: Wood, plastic, etc.
Footprint: 8,800 x 4,200 x 5,300 mm (w x d x h)
Fan unit dimensions: 1400 x 1300 x 1500 mm  (w x d x h)



pdf icon Print / Download Disa (Airmaster ) NFK 2000 6+ 1 HJLR Reverse Air Dust Extraction Filter Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
