Donaldson Torit (DCE) DCE UMA Fully Self Contained Dust Extractor (Single Phase 240 Volt)

Stock No
EC2065
Manufacturer
Donaldson Torit (DCE)
Model
UMA102 G3 (240Volt)
Serial
172293
Approx Duty CFM / M³/Hr
600 // 1000
Filter Area ft² / m²
100 // 10
Other Info
Shaker Self Cleaning Mechanism.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
215
External Dimensions (WxDxH mm) [?]
1350 x 620 x 2240
Delivery
Your delivery options

Description

A second hand Unimaster UMA 103 dust extraction unit designed to stand alongside a very wide range of dust generating machinery and processes.

The UMA  is a compact, self contained fabric filter dust control unit complete with a 1.5kW // 2Hp fan, self cleaning mechanism, easy-access filter assembly, and a 2ft³ waste container bucket with quick-release sealer gear.

Design Features

  • 240 volt single phase power requirement.
  • 1.5kW // 2.0 Hp motor.
  • Compact design.
  • Minimises floor space and fits in virtually any plant layout.
  • Versatile to suit a variety of dust collection applications.
  • Quiet & efficient operation.
  • Motors and fan are enclosed in the top collector housing to minimise noise.
  • Easy maintenance.
  • 2ft³ waste collection bucket.
  • Quick-release bucket Lever allows for easy removal and maintenance of the waste bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils.
  • Inserted into the filter bags, the mattresses keeps the filter bags open to maximize airflow and assist in releasing the dust during its cleaning cycle.
  • Bag-release screws.
  • Allow for easy removal of bags from the front of the machine.
  • Selection of filter media allows the unit to be tailored to suit specific dusts and applications.
  • Modified inlet ducting.

pdf icon Print / Download Donaldson Torit (DCE) DCE UMA Fully Self Contained Dust Extractor (Single Phase 240 Volt) Datasheet

Additional files

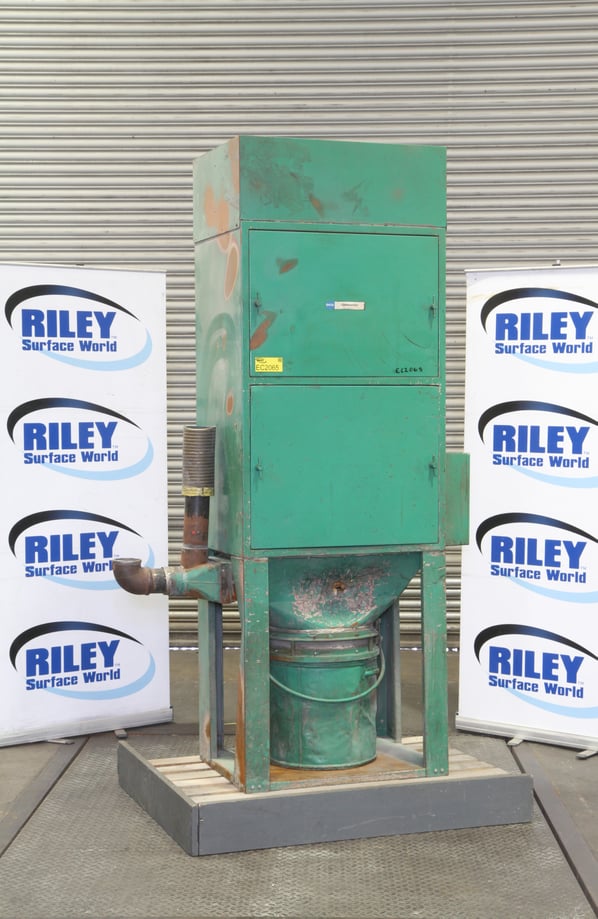

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
