Machines & equipment for sale

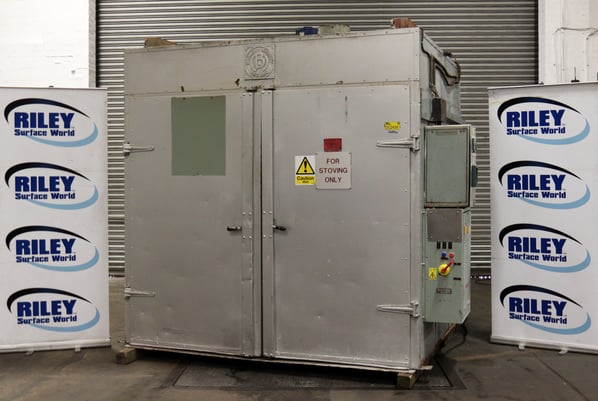

Barlow Whitney Heavy Duty Industrial WB-E450 Double Door Box Oven

Stock No
OC2435
Manufacturer
Barlow Whitney
Model
WB-E450
Year of Manufacture
REF by ML
Serial
S13890314
Condition
From a working environment, Seen working by RSW, Good Condition, Seen powered at RSW
Internal Size (WxDxH mm) [?]
1820 x 1800 x 1820 (53)
Max Temp
300°C
Other Info
ATEX Rated Explosion Relief Panels
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1400
External Dimensions (WxDxH mm) [?]
2670 x 2150 x 2510
Delivery
Your delivery options

Description

An excellent example of a large Barlow Whitney box oven (part of the Almore Group), these large batch ovens are suitable for almost any application from simple drying processes to exacting metal treatments.

This would make an excellent addition for those processing larger batches or singular large items in a production environment.

Features

  • Maximum temp - 300°C
  • 36KW of heating power.
  • Roof mounted air circulation fan for even hot air distribution within the heating chamber during processing.
  • Robustly constructed twin locking doors with internal safety opening handles.
  • Steel floor.
  • Micro processor temp controller.
  • Eurotherm 2704, multi-loop temperature controller.
  • Eurotherm 2216E fitted.
  • Eurotherm Chessell 5100V  data recorder.
  • Manually operated vents.
  • ATEX rated explosion relief panel.

Possible Application.

  • Stress relieving.
  • De-embrittling.
  • Tempering.
  • Pre-heating of ferrous/non-ferrous/plastic/wood/glass substrates.
  • Curing.
  • Stoving.

Electrical Details

  • 415 Volt
  • 3ph
  • 50Hz
  • Heater load 36kW

Common Heat Treatments That Use Industrial Ovens & Furnaces

Heat treatment is a controlled process of heating and cooling materials in order to improve its properties, performance, and strength typically made up of three main steps. Firstly heating the metal to a specific temperature, soaking or maintaining the specific temperature for a certain amount of time, and cooling to a suitable rate following prescribed methods.

There are seven main techniques used for the heat treatment of materials, and all affect material in different way. These techniques are:

  1. Normalising
  2. Annealing
  3. Tempering
  4. Hardening
  5. Ageing
  6. Stress Relieving
  7. Carburisation

pdf icon Print / Download Barlow Whitney Heavy Duty Industrial WB-E450 Double Door Box Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
