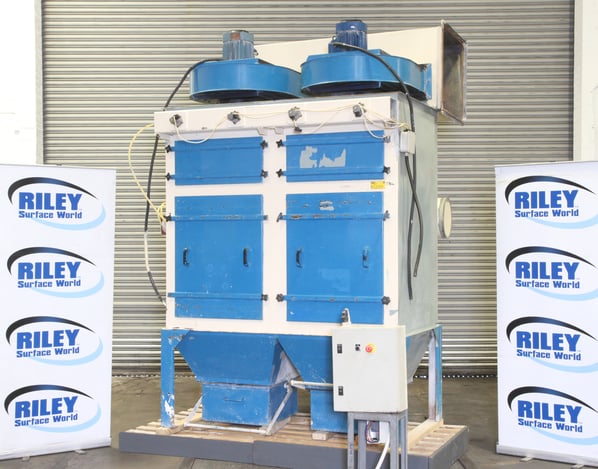

Reverse Pulse Dust Collector Reverse Pulse Jet, Twin Compartment, Self Contained Dust Extractor

Stock No
EC2053
Manufacturer
Reverse Pulse Dust Collector
Model
6 Cartridge, Reverse Pulse
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
5000 // 8400
Filter Area ft² / m²
1356//126
Other Info
Twin 4kW Fans (Total of 11Hp)
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
796
External Dimensions (WxDxH mm) [?]
2250 x1730 x 2970
Delivery
Your delivery options

Description

A self-contained collector with everything needed to begin collecting dust, this unit comes complete with two fans, a reverse jet pulse cleaning system and control panel.

Design Features

  • 6 Cartridge filters total of 126m² filter area.
  • Twin inlet deflector plates.
  • Air inlet ducting Ø330mm.
  • Air outlet 600 x 600mm.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation, the motors are 4kW each (total 11Hp).
  • Easy maintenance.
  • 2 x 2ft³ collection buckets.
  • Quick-release bucket levers, Allows for easy removal and maintenance of the bin.
  • Inlet deflector knocks down larger particles into the hopper, reducing bag abrasion and increasing bag filter life.
  • Heavy-duty cartridge filters, DRC1023.
  • Option to fix ATEX rated explosion relief panels at approx. £1,250, please ask for details.
  • Twin pressure differential gauges.

What are Reverse Pulse Jet Dust Collectors?

Reverse Pulse Jet Dust Collectors use a jet of air to clean dust from the collector's filters. Commonly used in pleated filter cartridge units, the filters are cleaned by a series of rapid, high-pressure air jets which sends a blast or shock of air through the reverse side of the filters. In effect this shakes the collected dust from the filters into the dust collection system. The rapid reverse pulse of air allows for continuous operation with the fan running and has high collection efficiencies.

Reverse Pulse Jet Dust Collectors are the most common type of industrial dust collectors and can handle a wide range of temperatures and pressures. They are commonly used in manufacturing environments where large volumes of solids are processed, such as mineral production, food processing and metal fabrication industries.

A control unit sets the variables such as time duration between pulses, length of pulse and pressure.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

pdf icon Print / Download Reverse Pulse Dust Collector Reverse Pulse Jet, Twin Compartment, Self Contained Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
