Vacublast (Wheelabrator) Ventus 92 Pressure Fed Shotblast System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
SC999
Manufacturer
Vacublast (Wheelabrator)
Model
Ventus 92 PR
Year of Manufacture
2002/3
Serial
230386
Condition
From a working environment, Excellent Condition
Work Envelope (WxDxH mm) [?]
640 x 700 x 900
Work Handling Method
Manual
Other Info
Complete Matched System
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
180 + 410
External Dimensions (WxDxH mm) [?]
980 x 900 x 1800
Delivery
Your delivery options

Description

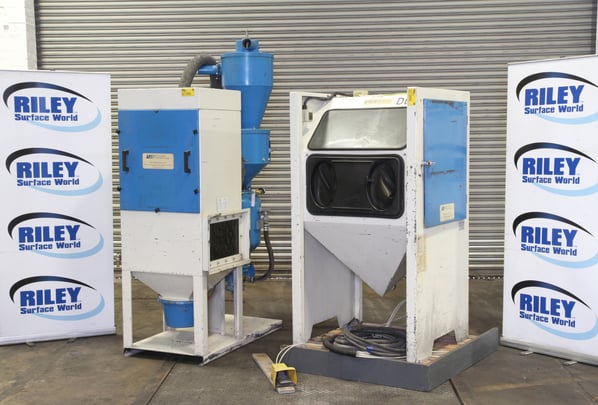

The unit comprises of a folded and welded steel chamber with front armlets, large viewing window, foot pedal operation and an internal viewing light.

The separate power pack includes a media grading and waste-dust separator cyclone mounted above a 30 litres pressure feed pot. Both are attached to the rear of the 0.75kw reverse pulse dust extractor with 5M² of filter area and a 15 litres waste collection bucket.

The Ventus has the ability to blast at up to 100psi with a wide range of abrasives and would have an average
consumption of 82cfm at this pressure with an average size nozzle.

The sophisticated cyclone system enables the cut point of the separation of reusable abrasive from waste to be accurately set allowing maximum separation of the reusable abrasive and the waste dust.

With the aerated feed system the abrasive blasting stream can be set accurately and consistently even at low blasting pressures making this a very versatile machine.

The underslung power pack and 30 ltr pressure pot feeds the blast pot and nozzle with only good regraded abrasives without any of the waste dust and fines recirculating in the system to increase productivity and offer a uniform finish.

Technical Specifications

  • Air consumption 2.1m³@ 7bar using a 6.5mm nozzle
  • 30 litres pressure vessel

Recommended grades and typical types of media:

  • Aluminium oxide 24/30-180/220
  • Chilled iron Go5-G24
  • Glass bead 85-600 microns

Pressure control 5-100psi

Overall Dimensions:

  • Cabinet 980mm x 900mm x 1800mm
  • Dust extractor/cyclone (WxDxH) -  950mm x 1330mm x 2440mm, 450kg

Applications

  • Rust and heat scale removal
  • Paint stripping
  • Surface texturing
  • Preparation for painting, bonding and plating
  • Corrosion removal
  • Shot peening
  • General component cleaning
  • Cosmetic finishing
  • Mould cleaning.
  • Glass etching.

The underslung power pack and 30 ltr pressure pot feed the blast pot and nozzle with only good regraded abrasives without any of the waste dust and fines recirculating in the system to increase productivity and offer a uniform finish.

Features

  • Low noise levels.
  • Robust construction.
  • High ventilation rate for good visibility.
  • Large viewing window.
  • Free standing blast generator and dust collector measuring 960mm x 1500mm x 2350mm.
  • Pressure regulation at operator position for ease of adjustment.
  • Elliptical glove ports to suit a wide range of operator sizes.
  • Anti-static gauntlets.
  • Internal blow down gun.
  • Adjustable abrasive feeding.
  • Interlocked door.

pdf icon Print / Download Vacublast (Wheelabrator) Ventus 92 Pressure Fed Shotblast System Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
