Guyson International Euro 6PF System with Extractor & Cyclone

Stock No
SC988JS
Manufacturer
Guyson International
Model
Euro 6PF
Year of Manufacture
2020
Serial
805282
Condition
Refurbished by RSW, Brand New, Unused
Work Envelope (WxDxH mm) [?]
1000 x 700 x 450mm
Work Handling Method
Manual Multi Door Access
Other Info
Heavy duty blasting machine
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
450kg
External Dimensions (WxDxH mm) [?]
1150 x 900 x 1900mm
Delivery
Your delivery options

Description

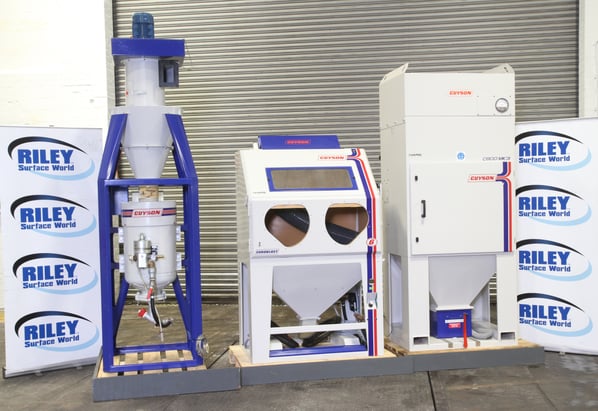

An industrial shot blast cabinet which offers a very wide range of finishes and processes from peening to heavy surface coatings removal. The pressure Pot Blasting System is complete with 3 separate components including a Guyson 6 PF blast cabinet, matching dust extraction system, cyclonic separator coupled to a large pressure blast pot.

Features Include:

  • Twin front doors with a swing aside lower access door and an uprising upper door for loading of larger components.
  • Abrasive resistant lining.
  • Carbide tipped blast nozzle.
  • Removable Ø650mm rotary table.
  • Large internal viewing window, light and twin front armlets.
  • Power assisted cyclone with large capacity pressure feed pot.

Extractor – C800 MK3 Dust Collector – 960mm x 950mm x 2400mm

  • C800 / 3
  • SN – 805280
  • Year of manufacture 2020 (Unused)
  • 302kg
  • Dust collection bin
  • Starter, control box & Reverse pulse fitted to the rear
  • RP – PS 4.7 Bar , TS -10 to 50c , PT 7.05 Bar

Cyclone – 750mm x 800mm x 2510mm (+Motor 300mm Estimate)

  • 75/16 G55 Cyclone
  • SN – 805281
  • Year of manufacture 2020 (Unused)
  • 282kg

ACF Pressure Pot

  • Fab No 7583
  • Type: SV54
  • Volume: 55L
  • Pressure: 8 Bar // 11.5 Bar
  • Temp: -10 – 50°C

pdf icon Print / Download Guyson International Euro 6PF System with Extractor & Cyclone Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
