Machines & equipment for sale

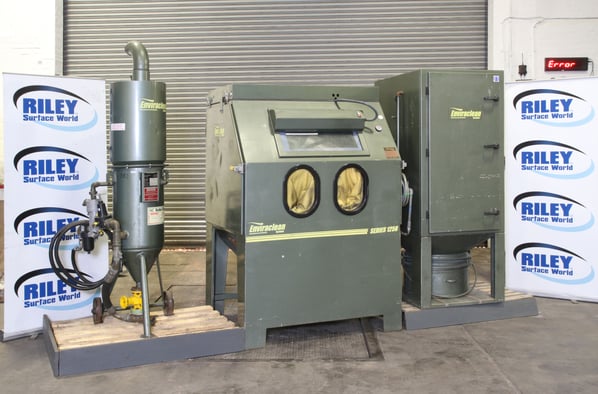

Hodge Clemco Enviraclean 1250 Shot Blast Blast Cabinet with Cyclone, Pressure Pot and Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
SC986JS
Manufacturer
Hodge Clemco
Model
IND 1250 Comp XM
Year of Manufacture
2001
Serial
167538
Condition
From a working environment, Good Condition, Current Model, Seen powered at RSW
Work Envelope (WxDxH mm) [?]
940 x 1250 x 850mm
Work Handling Method
Manual
Other Info
Freestanding modular construction
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
380
External Dimensions (WxDxH mm) [?]
1370 x 1250 x 1970mm
Delivery
Your delivery options

Description

Pressure feed hand blast cabinets are essential when removing heavy corrosion, tough coatings or when high production rates are required. Cleaning rates are up to 5 times faster than a suction cabinet and are suitable for use with heavier, long life abrasives such as iron and steel.

Pressure feed machines are commonly used in high production environments or on applications such as the cleaning and descaling heavy castings.

The original application was designed to clean the mill scale from both the internal and external diameters of large diameter tube, and clean the threads of oil pipe, and drill tubes.

Feature Include:

  • Manual and auto operation.
  • Double door access.
  • Large work chamber area.
  • High visibility chamber with large viewing window.
  • Glove aperture carefully designed to accommodate users of different heights and facilitate easy and safe component handling.
  • Manual door isolation with interlock.
  • Pneumatic foot pedal control for instant operation in manual mode.
  • Vacuum recovery unit to minimise blockages in the machine.
  • Pressure regulator for fine control of air pressure.
  • Abrasive grit valves for accurate adjustment of media feed rate.
  • Safety door interlock system which interrupts blasting operation in the event of any of the doors being opened.
  • MJ Mini 9/22/2-2 high capacity reverse pulse, extraction unit to aid visibility and cleanliness inside the blast cabinet.
  • Heavy duty internal rubber curtains.

Suitable Materials Processing:

Metals

  • Removal of corrosion, millscale and coatings
  • Deburring
  • Peening
  • Surface preparation
  • Cosmetic surface finishing
  • Brazing flux removal

Plastics

  • Composites,
  • Rubber
  • Deflashing of mouldings
  • Texturing of plastic surfaces
  • Coating removal from composites and plastics
  • Mould cleaning
  • Surface etching for material bonding

Electronics

  • Epoxy resin removal
  • Glass etching and frosting
  • Decorative or functional etching
  • Ceramics
  • Etching or removal of imperfections
  • Wood ageing or distressing wood

Specifications

  • External dimensions 1370mm x 1250mm x 1970mm
  • Blast pot: 1446 HCP9
  • Cyclonic Separation
  • Internal usable dimensions // Work Envelope 940mm x 1250mm x 850mm
  • Air consumption (range with a 7mm nozzle) 20-40 cfm

pdf icon Print / Download Hodge Clemco Enviraclean 1250 Shot Blast Blast Cabinet with Cyclone, Pressure Pot and Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
