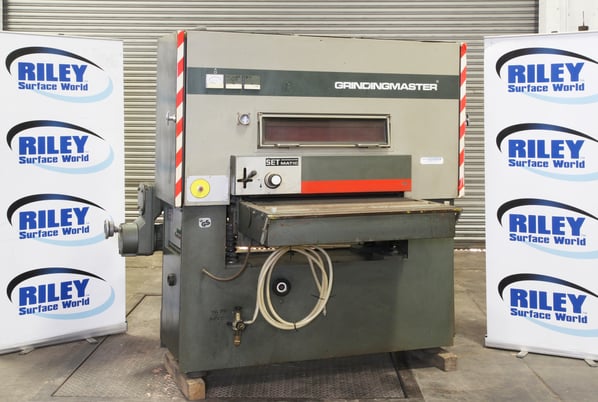

Grindingmaster Ellesco MCSB 900 Flat Bed Belt Grinder

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
PB1171
Manufacturer
Grindingmaster
Model
MCSB - 900
Serial
KP472-14
Condition
Good Condition, Seen powered at RSW
Other Info
Heavy duty through feed belt grinder
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2020 x 1500 x 2010
Delivery
Your delivery options

Description

This pre owned Ellesco Grindingmaster is a premier industrial metal working multi finishing machine. The MCSB 900 is a 900mm wide belt dry working Grindingmaster that is equipped with a powerful motor allowing it to process the toughest and heaviest jobs around.

Typical Process Applications Covered by this Machine

  • Stock removal of multiple individual parts and sheet materials.
  • Sizing and finishing of parts and sheet materials.
  • Deburring punched, nibbled, sheared or laser-cut sheet metal parts.
  • Calibrating or keying carbon, rubber, wood or other soft materials.
  • Grain finishing of any material.

Standard Features Include:

  • Centralised operator control panel.
  • Full 900mm working width x 150mm max. height.
  • Wide belt head with fine adjustments of contact roll, 150mm overall clearance.
  • Conveyor bed on 4 heavy duty precision spindles.
  • 4 x ridged, precision made, rubber coated, workpiece hold down rolls.
  • Motorised, single point thickness setting.
  • Vernier thickness read-out.
  • Conveyor reverse for set-up.
  • Variable speed table motor.
  • Fixed/floating conveyor table.
  • Load amp indicator.
  • Belt oscillation.
  • Front edge safety bump E stop.
  • Pneumatic tensioning.
  • Air actuated braking.

Only 1350 Run hours

Available to purchase separately from our dust control section, you will be able to find a suitable dust control plant to match your particular process application whether it be wet or dry.

pdf icon Print / Download Grindingmaster Ellesco MCSB 900 Flat Bed Belt Grinder Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
