Machines & equipment for sale

JLS (Redditch) Ltd Heavy Duty Twin Chamber, Twin Door Electric Industrial Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Refurbished by RSW, Excellent Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
OB2376
Manufacturer
JLS (Redditch) Ltd
Model
Twin or Single Chamber Twin Vertical Door
Year of Manufacture
Ref 2023
Serial
26/1352
Condition
Refurbished by RSW, Excellent Condition, Seen powered at RSW
Internal Size (WxDxH mm) [?]
Single Chamber 1820 x 2835 x 1500
Max Temp
300°C Brand New 60kW Heating Elements
Other Info
Twin Chambers each 1820 x 1380 x 1500
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2900 x 3240 x 4140mm
Delivery
Your delivery options

Description

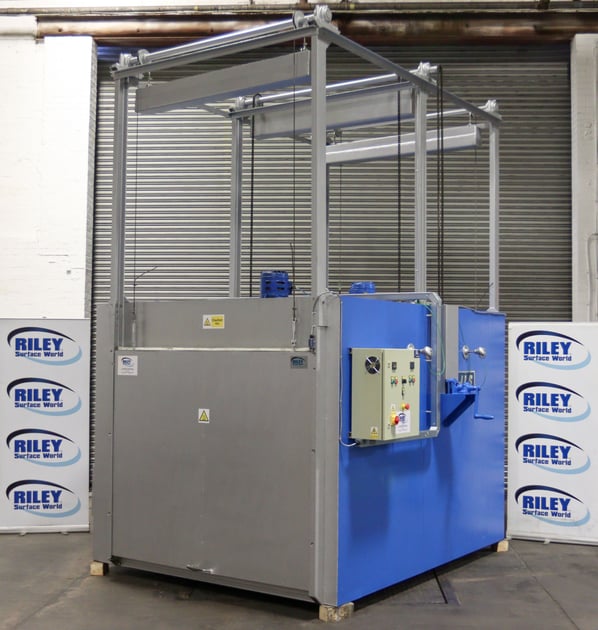

A unique heavy duty JLS industrial oven with counterbalanced doors to each end. A central removable dividing wall enables two options, either use as a twin chamber oven or a larger single chamber oven. 36kW of heating power (TBC), with twin roof mounted air circulation fans and twin thermocouples one set to each chamber.

A good example of an electric batch oven from one of the leading UK manufacturers, JLS (Redditch) Ltd.  Their ovens are ideally suited to a wide range of industrial uses and market sectors including aerospace, pharmaceutical, composites, electronics, oil exploration and product finishing.

Features

  • Twin independent chambers, control each independently, different temperatures if required.
  • Counterbalanced doors to each end.
  • Removable central vertical uprising dividing wall.
  • Twin roof mounted air circulation fans - 1.5kW / 2Hp. 1400 rev/min.
  • Twin thermocouples, one per chamber.
  • Twin RedLion temperature controllers, one for each chamber.
  • 2 x 15kW Heating elements for each chamber.
  • Can be used as a large single oven (2835mm deep) or two smaller independent ovens (dependent on control panel).
  • Chart recorder.
  • A modern control panel would be required, please ask for details.

Technical Specifications

  • 36kW per chamber heat load (TBC).
  • Large roof-mounted air circulating fans. 1.5kW / 2Hp. 1400 rev/min.

Typical Applications

  • Paint Stoving
  • Epoxy/Polyester Powder Curing
  • Lacquer Drying
  • Hydrosetting
  • Battery Processing
  • Moisture Removal
  • Plastic Curing
  • Rubber Softening
  • Metal Annealing
  • Spring Stress Relieving

Modernised electrical control panel has been fitted with new heating elements and wiring (2 x 15kW heating to each chamber).

pdf icon Print / Download JLS (Redditch) Ltd Heavy Duty Twin Chamber, Twin Door Electric Industrial Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
