Technowash TechSpray FM 1500/2

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
29 September 2022 15:00 GMT while stocks last
Part of a Direct Site Clearance
Riley's Cleaning Machine Event
Condition
From a working environment, Excellent Condition, Current Model
Location
Wolverhampton, West Midlands, UK
Stock No
DB1450S
Manufacturer
Technowash
Model
TechSpray FM 2000/2
Year of Manufacture
08/2019
Serial
51641
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
1500 x 1000mm (Basket) Max height 250mm
Process Stages
Twin - Wash / Spray Rinse
Other Info
Max. capacity of washing basket 100kg
Location
Wolverhampton, West Midlands, UK
Weight (kgs)
1600
External Dimensions (WxDxH mm) [?]
3600 x 2700 x 2260 (When Door is open)

Description

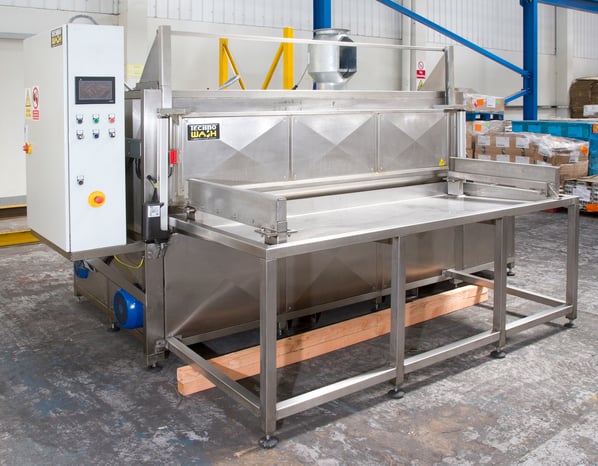

Techno wash model TechSpray FM 1500/2 Two stage, front loading component spray wash.

The Front loading range of fully automatic, robust, reliable and durable, Front loading parts washing machines have been designed to meet modern industries demands for efficient component cleaning whilst remaining ergonomic and safe and eliminating environmental and operating hazards associated with solvent cleaning systems.

Suitable for use with safe, water-based biodegradable detergents, these machines are ideal for removing oils, grease, soils and solid particles from a large variety of parts and sub-assemblies.

If fitted with fine inline filtration and suitable oil separation, they are able to achieve high standards of cleanliness.

Maximum cleaning efficiency is achieved with a constant speed, power driven, and component table, enabling all the power produced by the wash pump to be used for the washing process, whilst ensuring that delicate and lightweight parts can be washed and degreased without damage or disturbance.

The machine is operated by a HMI screen incorporating Technowash smart control technology. The machines parameters are changeable within this interface. Function

The machine comprises of the following process stages:

1. Spray wash stage with detergent (heated and re-circulated)

2. Spray rinse stage (heated and re-circulated)

Features:-

  • The machine is fully manufactured for 304L grade stainless steel.
  • Equipment attached: Full double skin stainless steel construction with thermal acoustic insulation throughout.
  • Stainless Steel mesh component basket measuring 1500 x 1000mm with minimal product height clearance. To accommodate up to 100kg component weight.
  • External load/ drip tray to roll the component basket onto, for loading and unloading purposes.
  • Power driven front mounted vertical access door.
  • Machine mounted control panel, complete with Siemens LOGO micro-processor and all relevant control and indicator/ warning lights including adjustable fluid temperature control and process cycle timer.
  • Electric powered fluid heating fitted to the wash and rinse tanks with digital type, fluid temperature control.
  • Multiple water powered stainless steel rotary spray bar assemblies with spray jets positioned above and below the component basket to spray the heated wash fluid solution onto the component parts.
  • Side mounted fluid saddle tanks with hinged and lockable tank lids
  • High and low fluid level protection probes.
  • Chemical and corrosion resistant pressed stainless steel high flow wash and rinse pumps.
  • Integral coarse and medium level of fluid particle filtration.
  • Water vapor extraction fan/ motor assembly.
  • Automatic mains water refill solenoids fitted to the wash and rinse tanks.
  • Fine inline fluid particle filtration.

Technical data

Electrical

FM2000/2

Nominal input voltage

3 Phase 415 V @ 50 Hz

Supply current

100 Amps

Power consumption

59 kW

Heating output

4 off 12 kW

Pump Consumption

10.5 kW

SC150 steam condenser

1 off .55kW

Control Voltage

24v DC



Mechanical/ General

FM2000/2

Machine overall dimensions

3600 (w) x 2700 (l) x 2260 (h) (When Door Open)

Machine weight Empty

1500Kg

Max. capacity of the washing basket with even load (kg)

100 kg

Max. usable height (mm)

250 mm

Max. fill volume (L)

550L tanks

Noise level LPA

< 70 dB (A)

Circulation rate (L/min)

450l/min

Permissible cleaning agents

See Section 2.2 (of Operating manual attached)

Duty cycle

75%

Max. operating temperature

75°C

Spray Jets Acetal corrosion resistant V type

40° angle

Compressed Air requirements (Bar, M³/h)

15m³/h @ 6 bar






pdf icon Print / Download Technowash TechSpray FM 1500/2 Datasheet

Additional files

Operating and Installation Instructions

Electrical Diagram

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
