Machines & equipment for sale

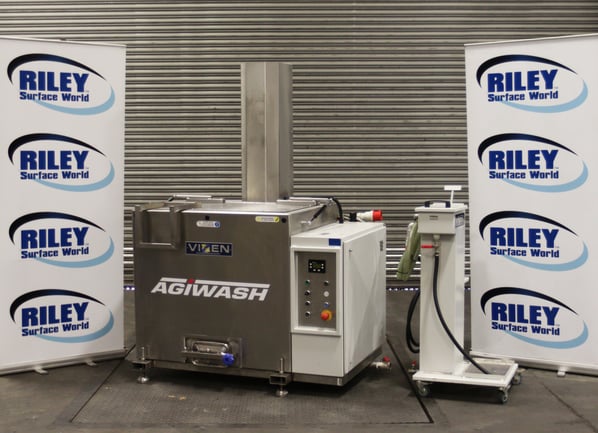

Vixen Surface Treatments Vixen Agiwash Dunking / Cleaning Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Stock No
DB1445
Manufacturer
Vixen Surface Treatments
Model
AGI 80
Year of Manufacture
2016
Serial
2846
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
790 x 440 x 450
Process Stages
Single Immersion Dunking
Other Info
Fully Stainless Steel + Filter
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
458 + 42
External Dimensions (WxDxH mm) [?]
1430 x 1140 x 1970

Description

Vixen surface treatments Agiwash machine has been developed for degreasing components that need to be completely immersed in hot water-soluble detergents and is particularly effective for cleaning tubular items or components with hollows that need to be flushed through with detergent.

Agiwash degreasing machines are fitted with a pneumatic ram connected to the wash basket carrier. A lever control raises the wash basket to the loading position, with the basket filled and then lowered into the detergent.

During the wash cycle, the basket is raised and lowered by the pneumatic ram at approximately 60 strokes per minute, causing a flushing action to occur. The cycle duration for washing and degreasing is adjustable, and automatically resets each time the start button is pressed.

The components are cleaned quickly and can be manually blown over with an air gun and can usually be flash dried afterwards.

This Agiwash 80 includes constant filtration with a stand-alone coalescing filter and a rear-mounted cartridge filter.

Standard Features

  • Stainless steel construction.
  • Double-skin insulated construction to retain the heat.
  • Fully-automatic operation.
  • In line external water filter system.
  • Temperature control.
  • Temperature gauge.
  • Process timer.
  • Lid safety switch.
  • Hot air vent suitable for connection to a suitable extraction or venting system.
  • Large bottom drain for ease of cleaning out.
  • emergency stop button.
  • 5 pin plug fitted.
  • Coalescing filter.
  • 6 off internal baskets 245mm x 200mm x 200mm

Technical

  • Large Stainless steel work basket - 800mm x 450mm x 450mm
  • Air requirements - 22 cfm
  • Fluid volume - 480 ltr
  • Pump flow rate - 160 ltr/min
  • Load capacity - 200kg
  • Heating power (TBC) - 9kW
  • Electrical supply -  380-440 Volt 3ph 36 Amp

pdf icon Print / Download Vixen Surface Treatments Vixen Agiwash Dunking / Cleaning Machine Datasheet

Additional files

Full Manual

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
